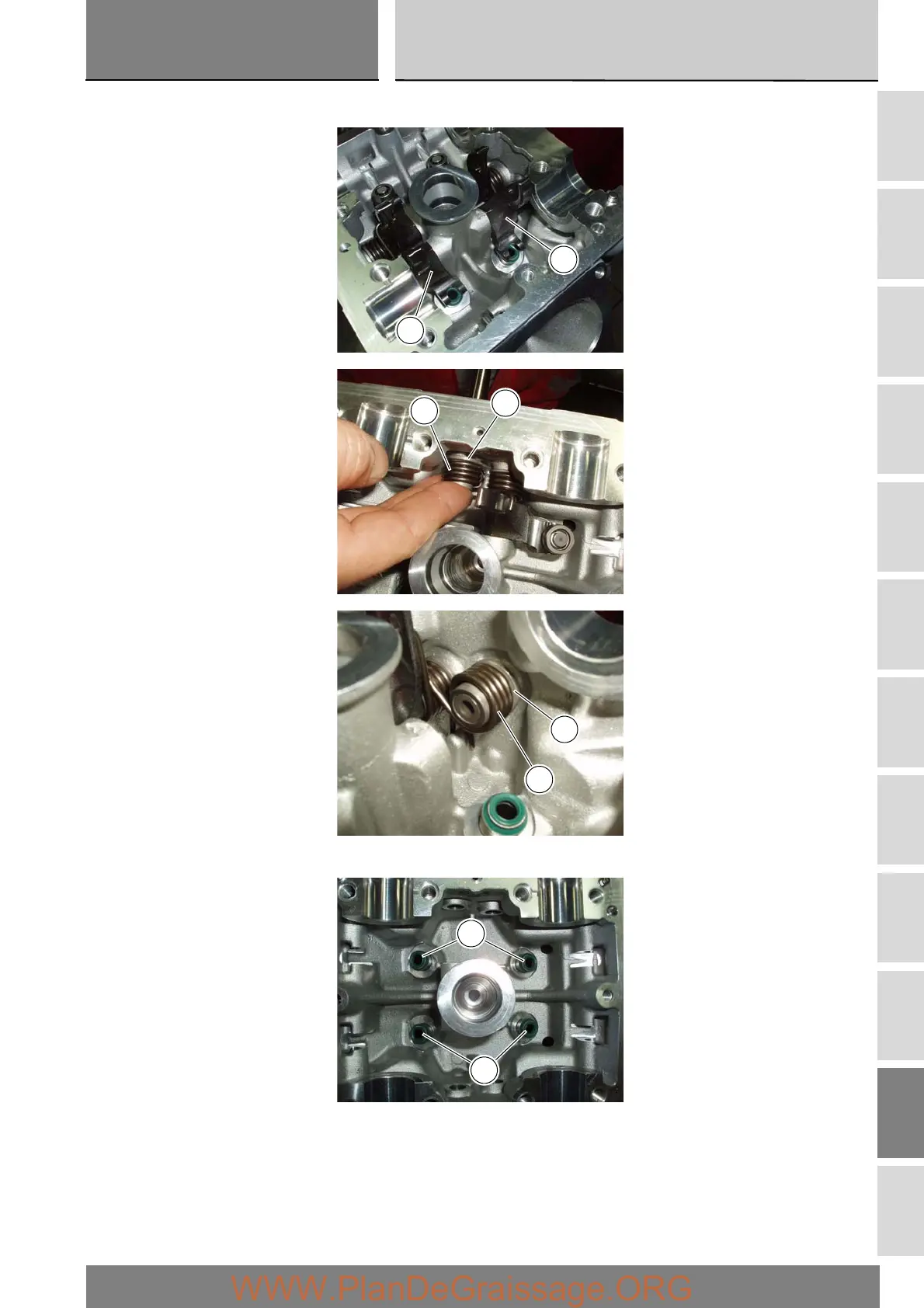

Remove the closing rocker arms (4) and (16), the springs (18) and (19) with the spacers (17).
Remove the seal rings (8) from the ends of the valve guides.
Repeat the same procedure for the other cylinder head.
4
16
18
17
19
17
8
8
