Engine

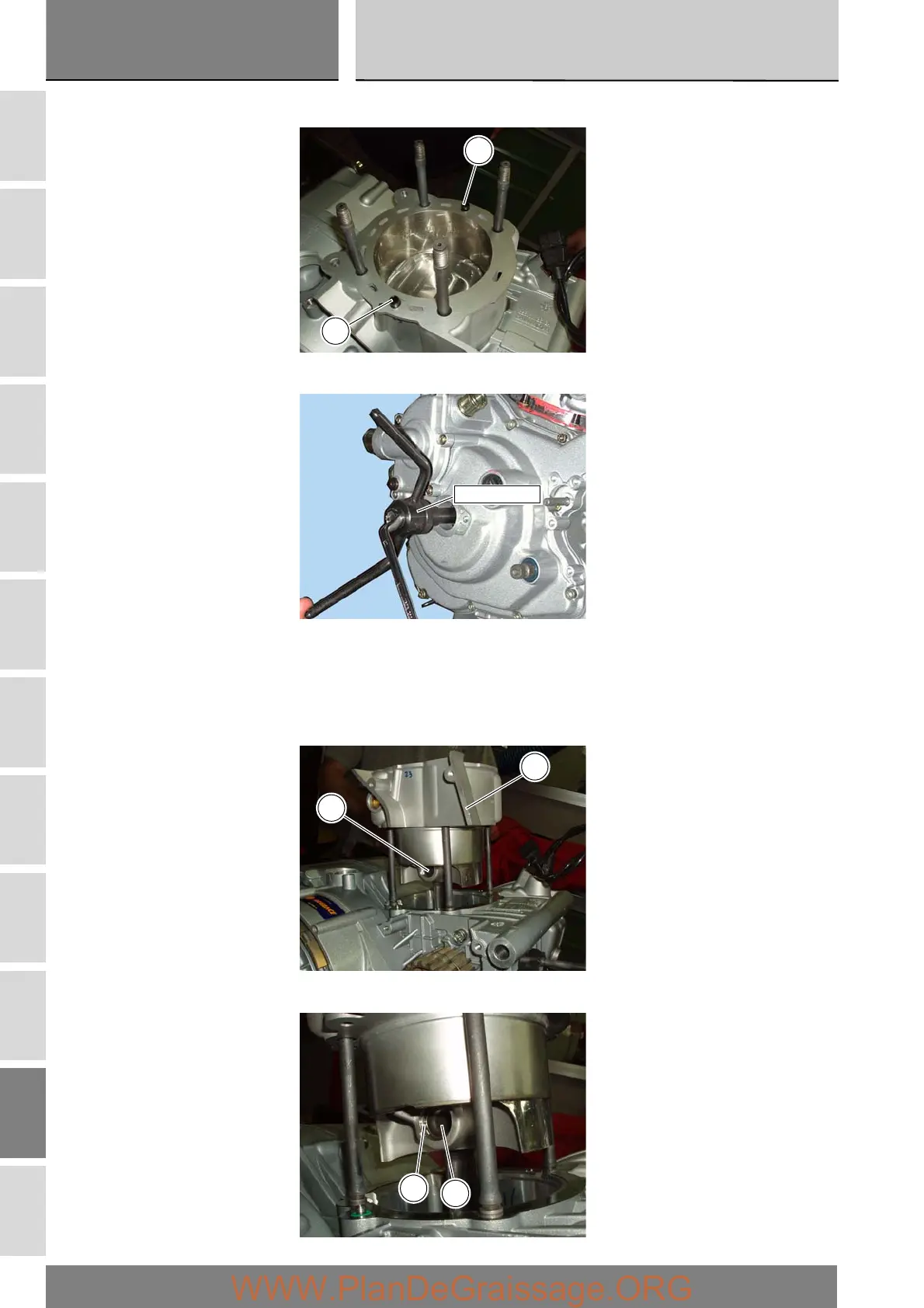

Remove the locating dowels (12).
Use tool no. 88765.1523 to bring the piston of the horizontal cylinder to TDC.
Carefully lift the cylinder barrel (10) off the crankcase, keeping it vertical.
If necessary, rock the cylinder slightly using both hands or tap its base gently with a rubber mallet. Continue to lift the cylinder
until you can access the gudgeon pin (3).
In order to avoid on reassembly the difficult operation of fitting the piston in the cylinder, we recommend removing both
components as a single assembly, as follows.
Stuff the crankcase opening with a rag or soft paper to prevent foreign material from falling in.
Remove the circlip (2) from the gudgeon pin (3) on the clutch side.
