N 5
1031098/1098S - M.Y. 2007 - edition 00
Engine

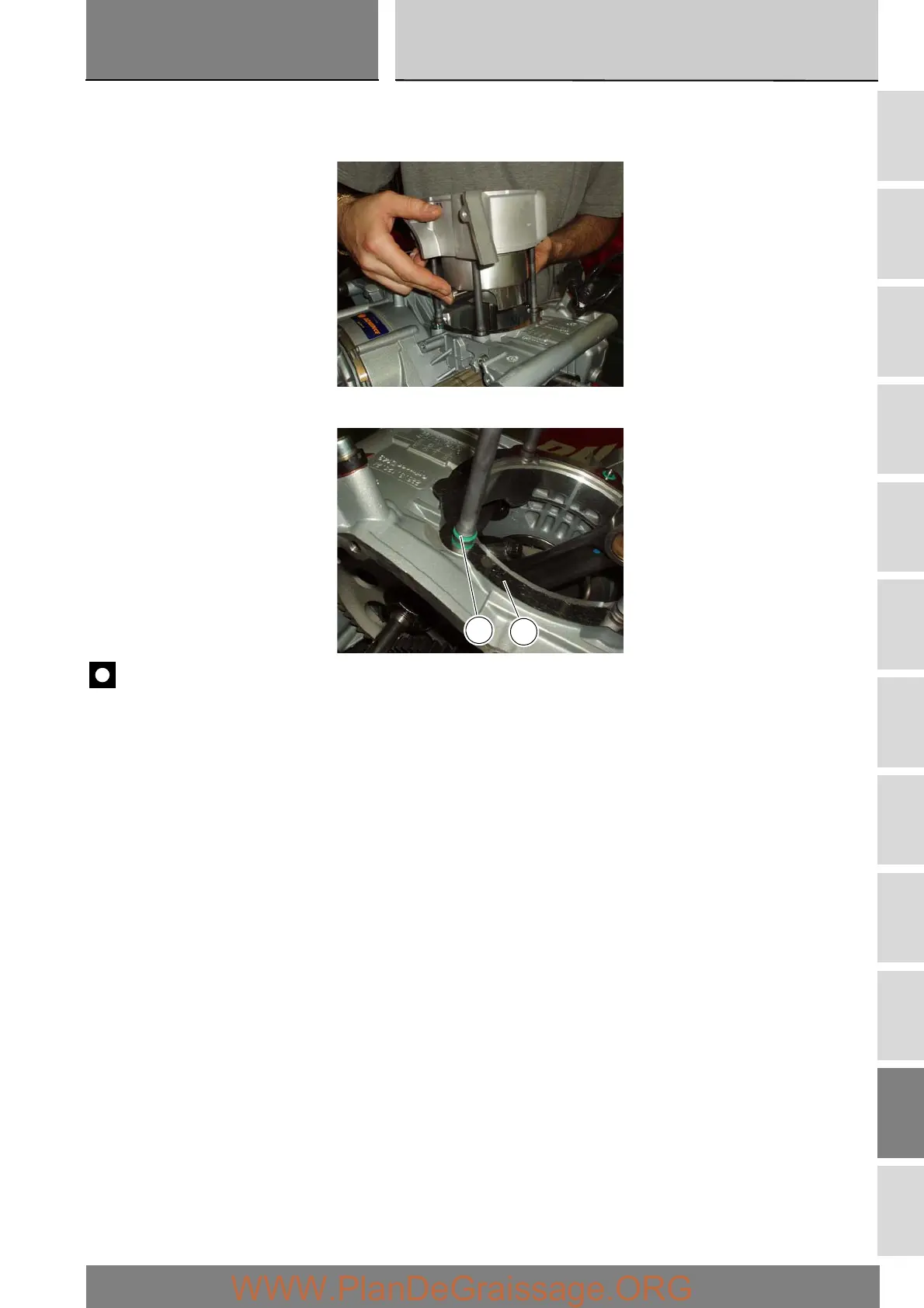

Working from the opposite side, drive out the gudgeon pin sufficiently to release the connecting rod.
Lift the barrel/piston assembly clear of the crankcase studs. If work is to be carried out on the piston, carefully withdraw it from
the cylinder.
Remove the four O-rings (A) located on the crankcase studs between the barrel and the base gasket (5).
Important
Mark the pistons to show from which cylinder they were removed:
V= Vertical - H= Horizontal
To remove the vertical barrel-piston assembly, bring the vertical piston to TDC and proceed as for removal of the horizontal
cylinder barrel.
5
A
