Engine

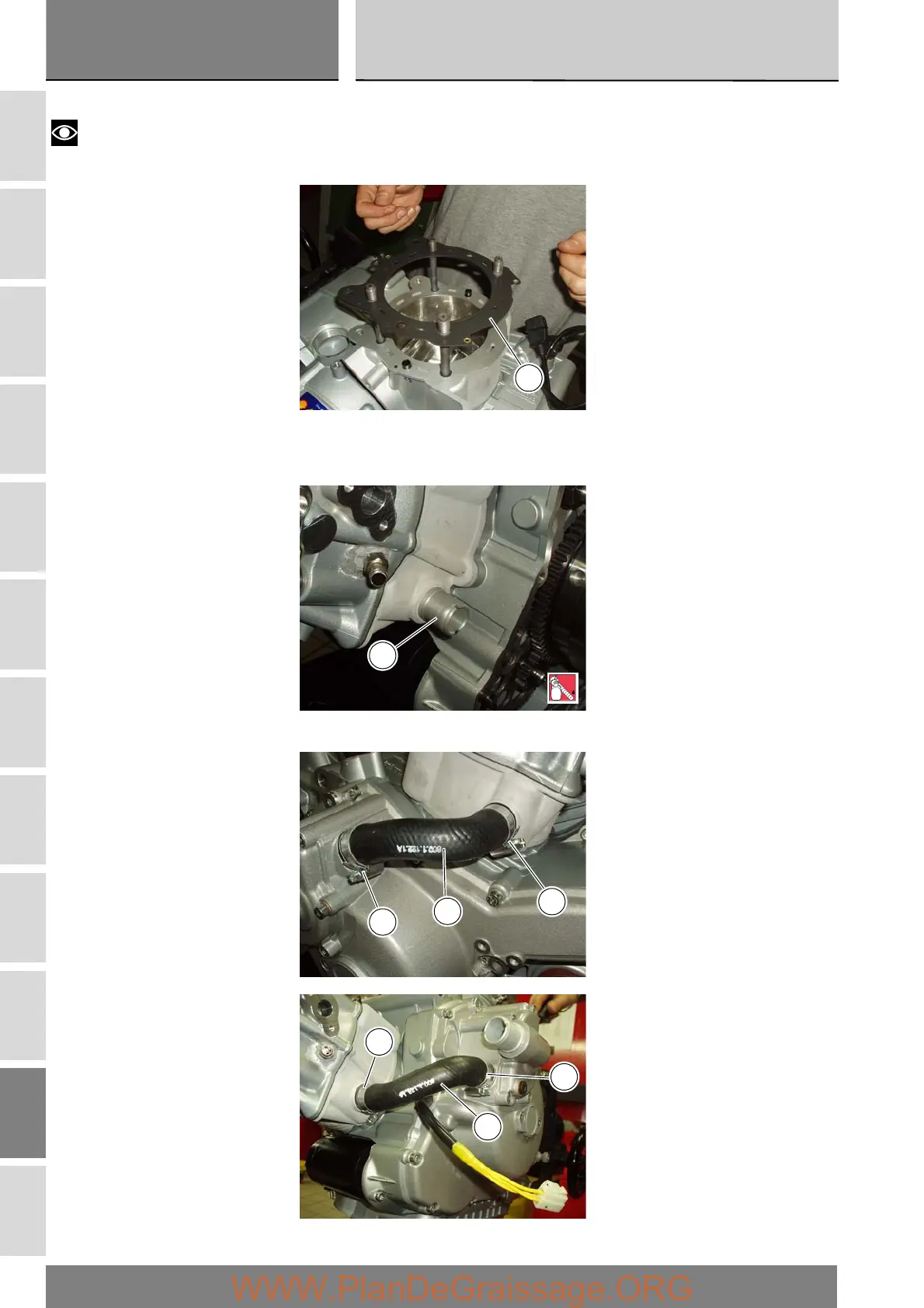

Fit the cylinder head gasket (11) over the studs. The side marked with the part number must be facing the head.
Notes
The shape prevents incorrect fitting of the gasket, provided that the coolant flow holes are aligned with those on the cylinder.
Repeat the procedure for the other cylinder and refit the cylinder heads (Sect. N 4.5).
Apply the recommended threadlocker to the unions (6) and tighten them to the specified torque (Sect. C 3, Engine tightening
torques).
Fit the hoses (8) and (9) and tighten the clamps (7) to the specified torque (Sect. C 3, engine tightening torques).
11
5
LOCK
6
9
7
7
8
7
7
