N 6.3
1351098/1098S - M.Y. 2007 - edition 00
Engine

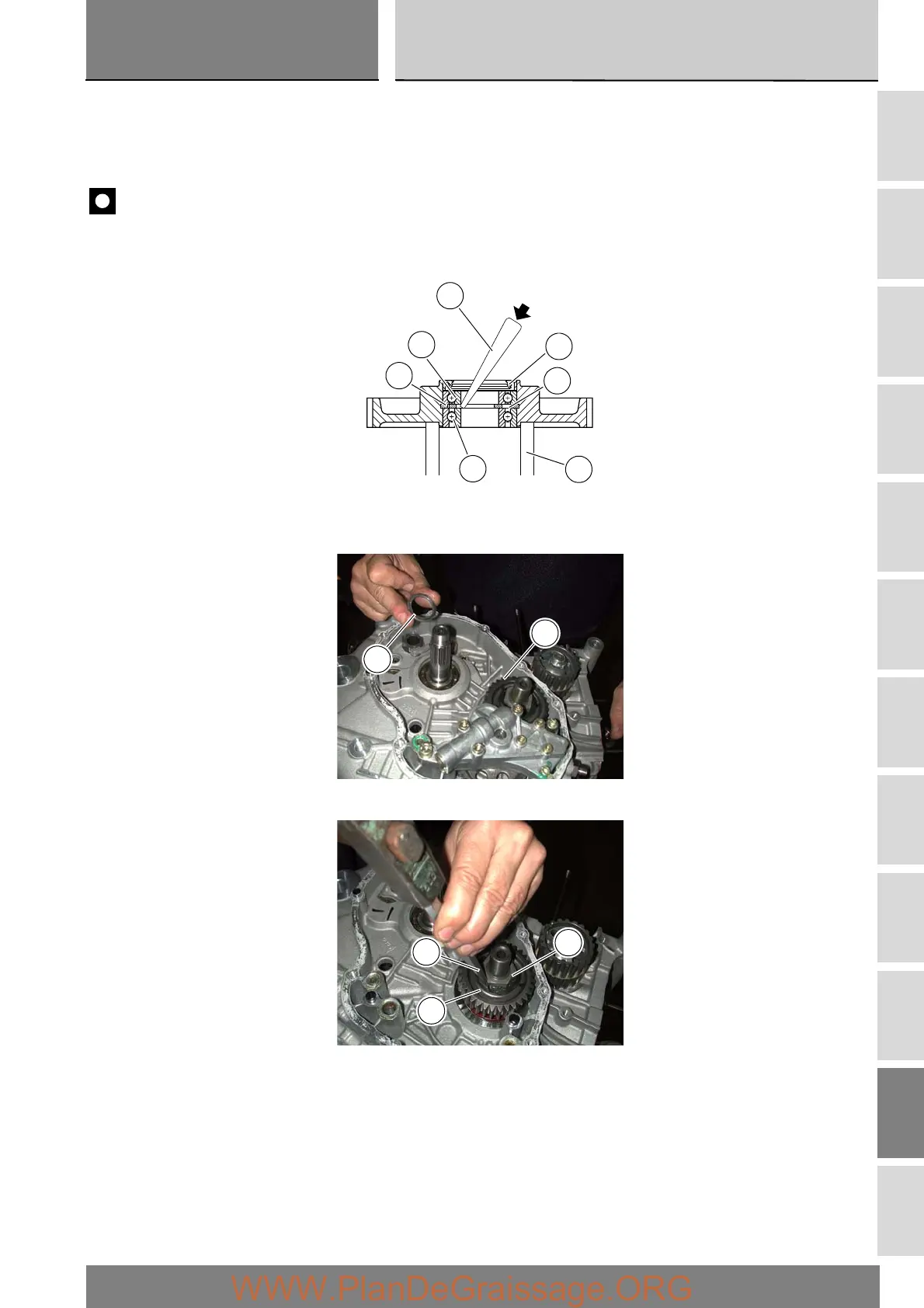

To renew the inner parts of the gear, use a suitable drift (A) and a support (B).
After removing the oil seal (2), tap from the inside towards the exterior using part of the inner race of bearing (4) to be removed,
after moving aside spacer (5) located between the two bearings.
Tap on different points to remove the components squarely.
Use the same technique to remove the bearing (6).
Important
Once disturbed, the oil seal (2), circlip (12) and the spacer (5) must be renewed. The latter two components must always be
renewed as a pair.
Remove the spacer (7) from the gearbox input shaft.
Remove the oil pump (Sect. N 2.3) to disengage the driving gear (D).
Straighten out the lock washer (10) on the nut (11) securing the driving gear (D) of the primary drive pair.
12
B
4
5
2
A
6
D
7
10
11
D
