G 3
251098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
Remove the brake master cylinder (Sect. F 3).

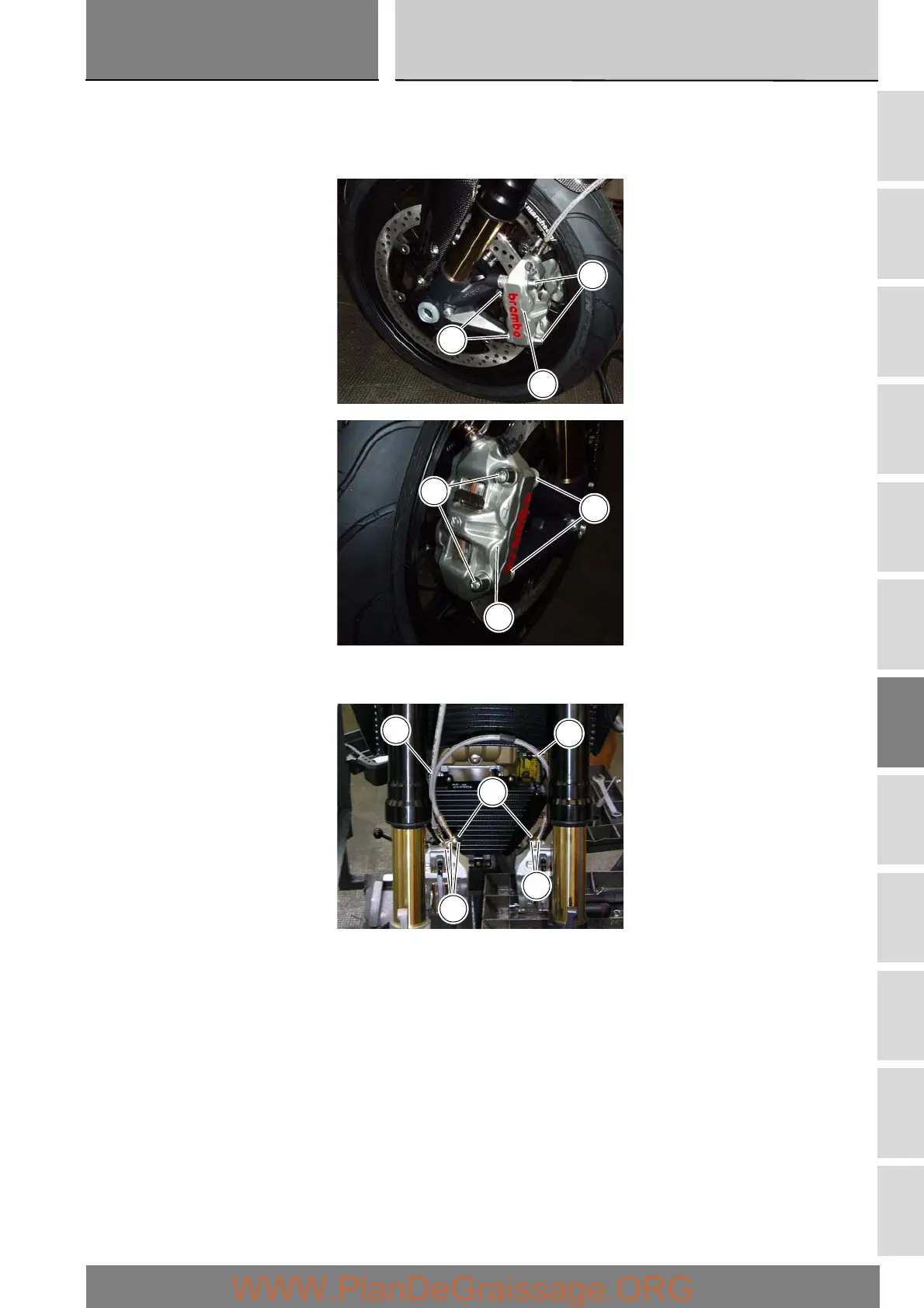

Unscrew the two retaining bolts (9) securing the left front brake caliper (11) to the fork leg.
Repeat the operation for the right brake caliper (10).
Recover the spacers (8).
Unscrew the banjo bolts (7) from both calipers and recover the sealing washers (2).
Detach the front brake calipers from the hose (3) and (15).
