section
N 4.1
48 1098/1098S - M.Y. 2007 - edition 00
Engine
Remove all tools installed for the timing check and tension the belts to their prescribed operating tension, as described in
Sect. D 5.

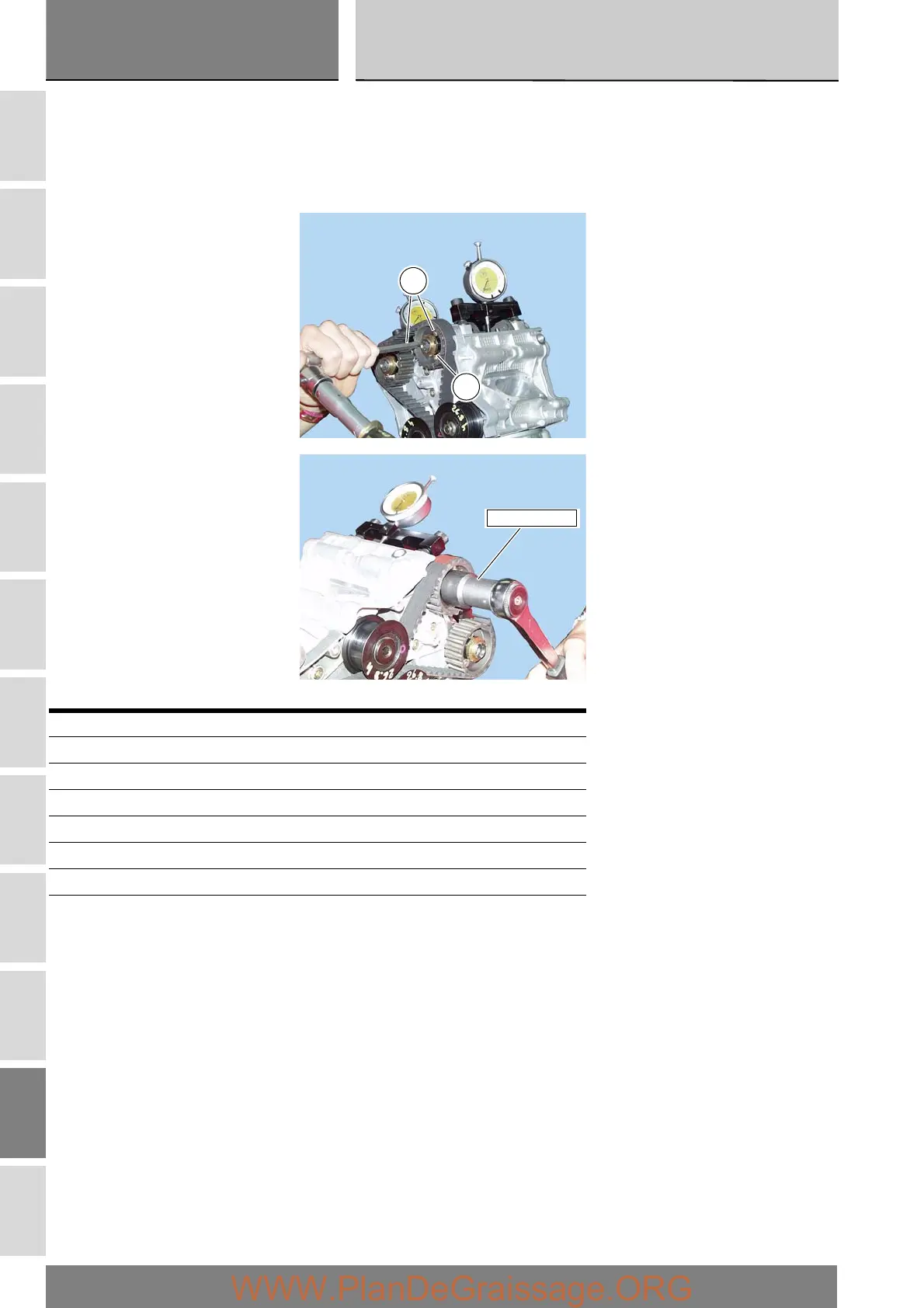

If the values obtained are outside the specified ranges (Sect. C 1.1), loosen the timing pulley bolts (M) and correct the value by
using the wrench supplied with service tool part no. 88713.1806 to turn the camshaft nut.
Then tighten the three timing pulley bolts (M) to the specified torque (Sect. C 3) and mark the new timing positions on the
relative components.
Refit the components removed in the procedure.
Operation Section reference
Refit the water pump cover N 3.3
Refit the timing belts N 4.2
Refit the rocker cover N 4.4
Refit the airbox L 6
Refit the fuel tank/seat cowling assembly E 3
Refit the radiator N 3.2
Refit the side fairings E 2
M
M
88713.1806
