Engine

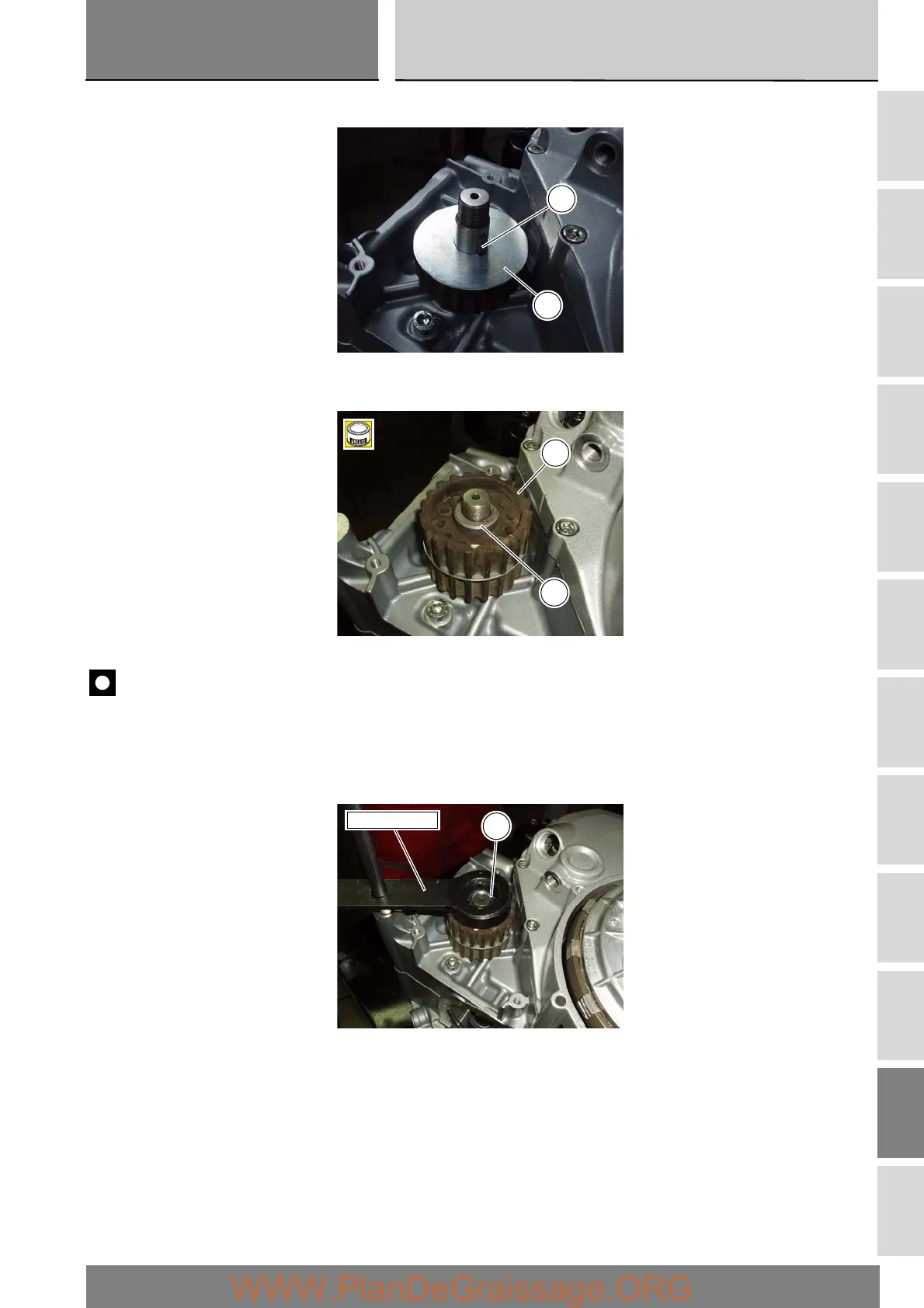

Refit the second Woodruff key (16) and the washer (19).
Locate the outer pulley (18) and the spacer (20).
Apply the recommended grease to the threads on the end of the driveshaft.
Fit the nut (15).
Important
To prevent the nuts working loose and consequent serious engine damage, always use new self-locking nuts on all timing belt
pulleys on reassembly.
Restrain the pulleys with service tool no. 88713.1805 and tighten the self-locking nut to the specified torque (Sect. C 3) using the
insert supplied with the tool in conjunction with a torque wrench.
16
19
A
18
20
88713.1805
15
