G 1
8 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
Overhauling the wheel
After you have checked the bearings, check the rim as follows.
Visually inspect the rim for cracks, scoring and deformation; change the wheel if damaged.
Insert the axle in the wheel and mount it on two fixed reference blocks.

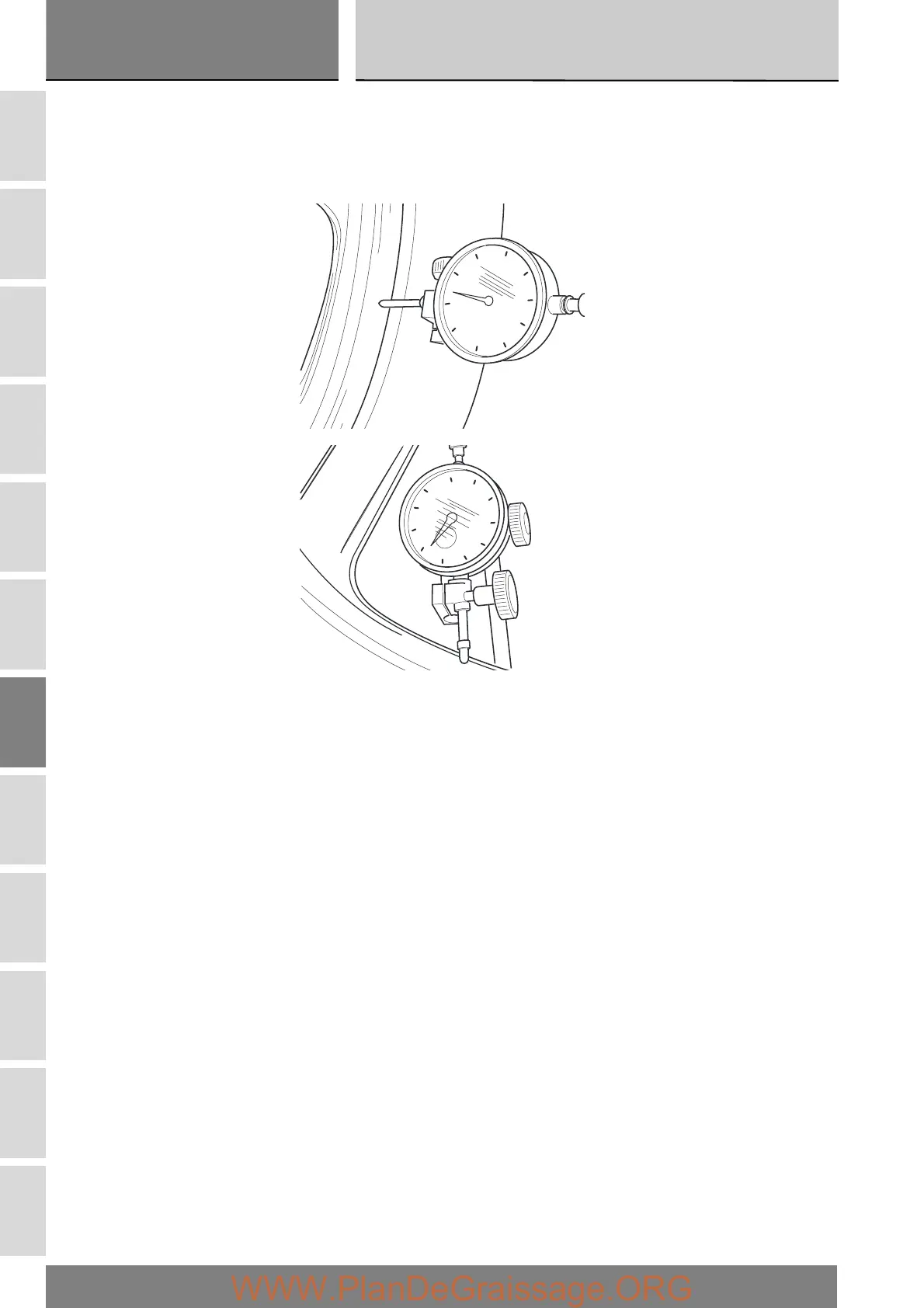

Using a dial gauge, measure rim runout and out-of-round relative to the axis of the axle (see Sect. C 1.1).
If the values measured are not within the tolerance limits, renew the wheel.
