Wheels - Suspensions - Brakes

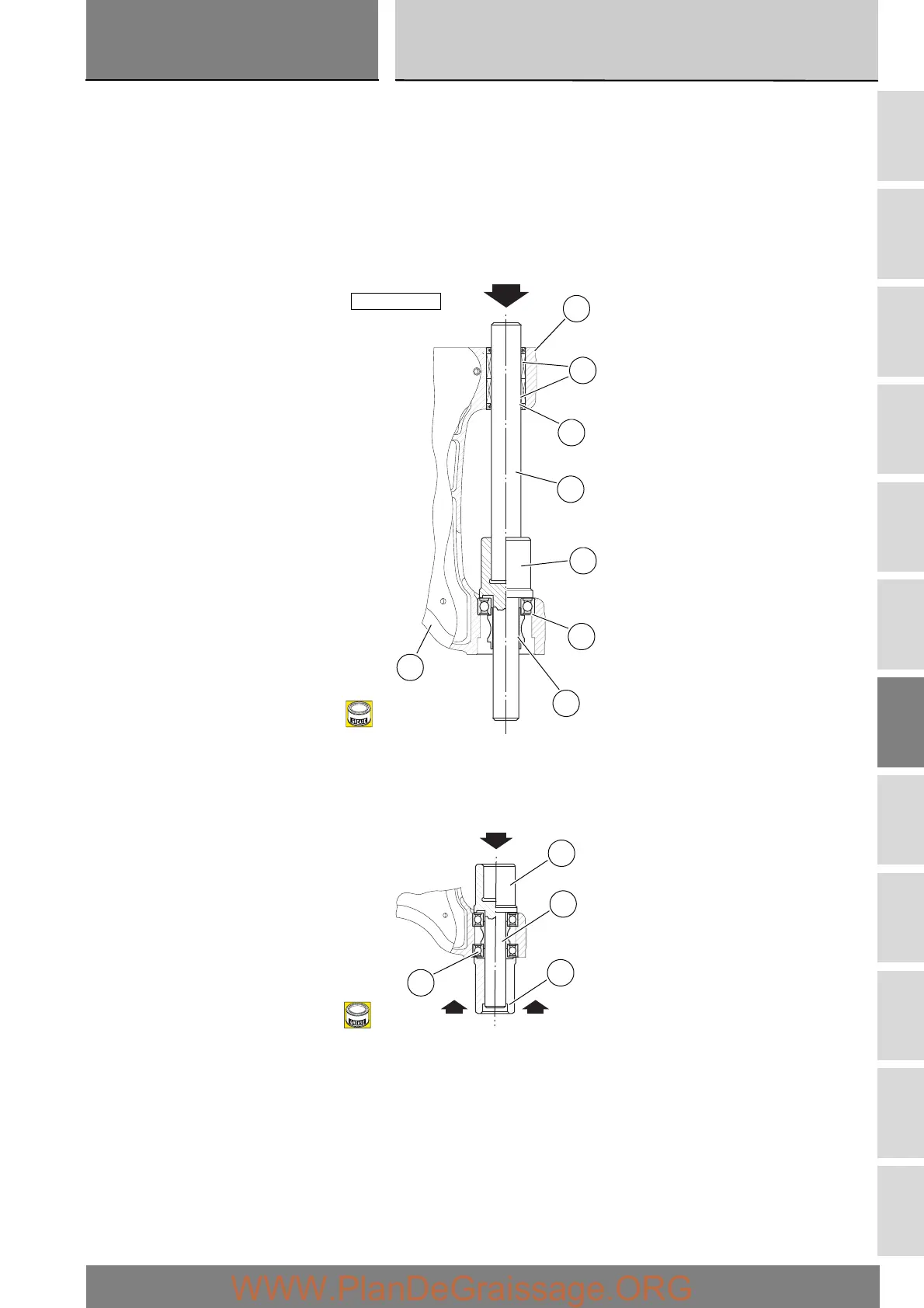

To install the ball bearing races (19) you will need tool part no. 88713.2409, composed of:
(A) – drift for internal bearings;
(A) – drift for external bearings;
(C) – guide pin.
Fit a new bearing (19) with the internal spacer (20) onto the drift (A) and position it on the interior of the right-hand side support
of the swingarm.
Insert the guide pin (C) into the previously mounted roller bearings and insert the other end in the bore in the tool (A).
Drive the bearing (19) fully into the swingarm.
Fit the other new bearing (19) at the outer end of tool (A).
Using tool (A) as a stop, use tool (B) to drive the external bearing up against spacer (20): remove the tools.
Before reinstalling the swingarm (4), grease the ball bearings (19), roller bearings (25) and seal rings (23) with the recommended
grease.
4
23
25
23
C
A
19
20
C
88713.2409
A
C
20
B
19
