G 5
44 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
Heat the entire swingarm up to 150 °C and support it.

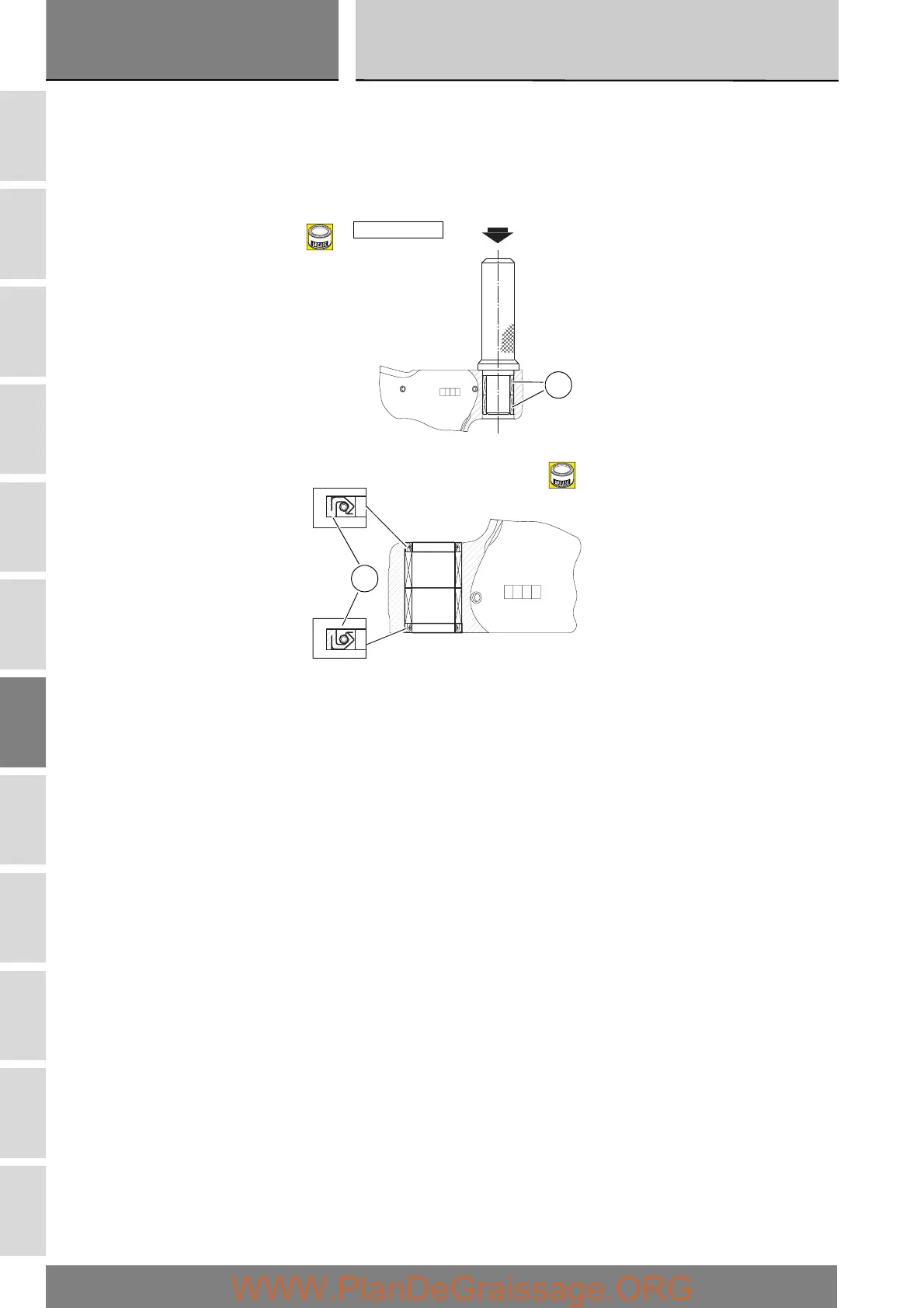

Fit the new roller bearings (25) on to service tool part no. 88713.1068 and, working from the outer side, install them in their bores
on the left side of the swingarm.
Drive them in until the tool is fully inserted into the swingarm.
Use the same tool to fit the new seal rings (23), positioned as shown in the sectional view, so that they seat against the newly
installed roller bearings.
25
C
88713.1068
C
23
