Frame
Inspecting the sidestand
Fit the sidestand leg to the bracket and check that there is no excessive play. Ensure that the ends of the sidestand are not bent
with respect to the shank.
A stand which shows signs of cracking must be renewed immediately.
See Sect. P 6 for testing the switch (5).
Reassembly of the sidestand

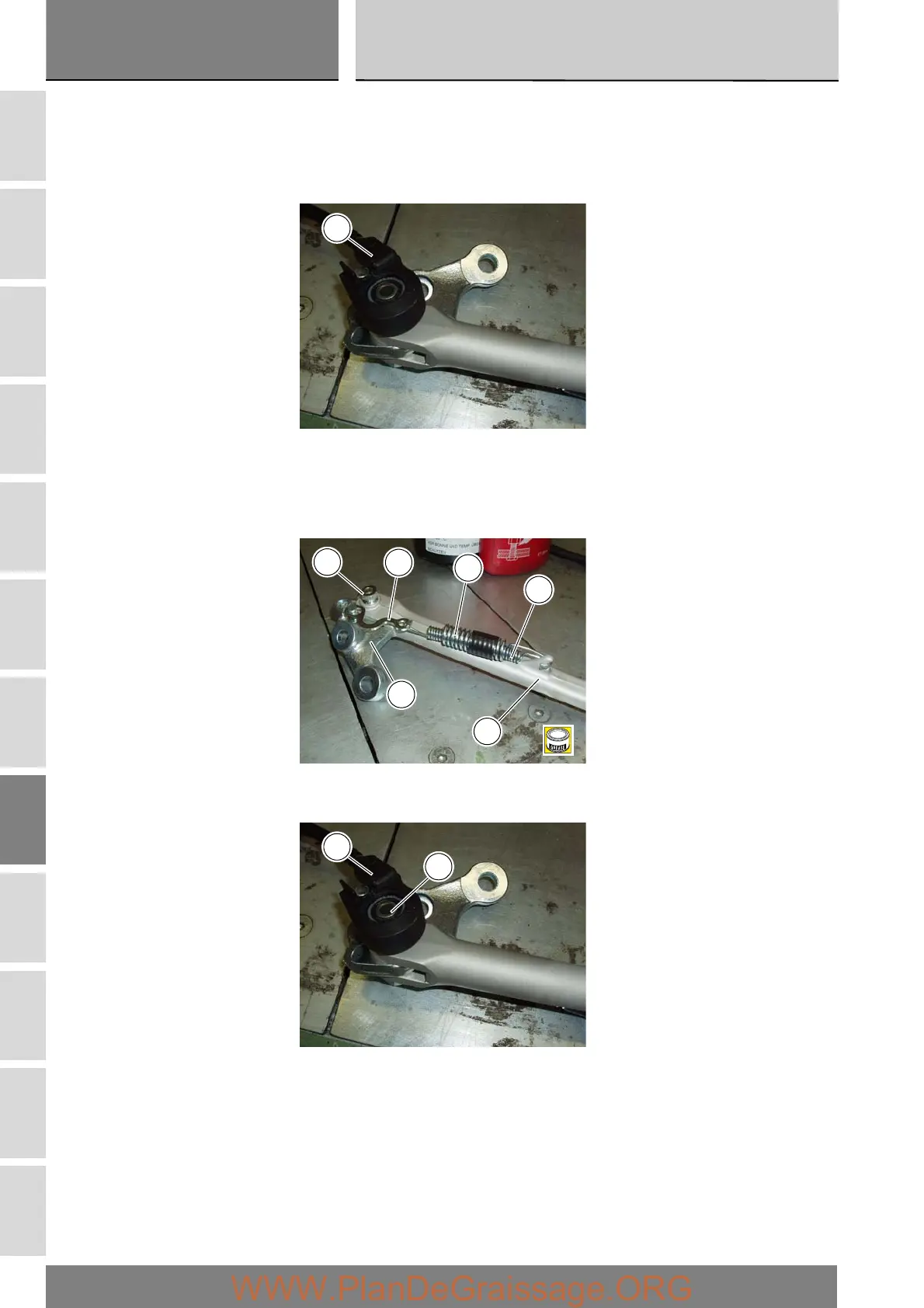

Grease the stand leg (1) and fit it to the plate (3). Secure it with pivot bolt (9) and nut (10).
Tighten the pivot bolt (9) to the specified torque (Sect. C 3).
Locate the sidestand return springs (6) and (7) and attach them to the connection plate (8) and to the sidestand leg (1).
Locate the switch (5) on the bracket against the pivot bolt (9).
Fit the retaining bolt (4) and tighten to the specified torque (Sect. C 3).
