Use and maintenance

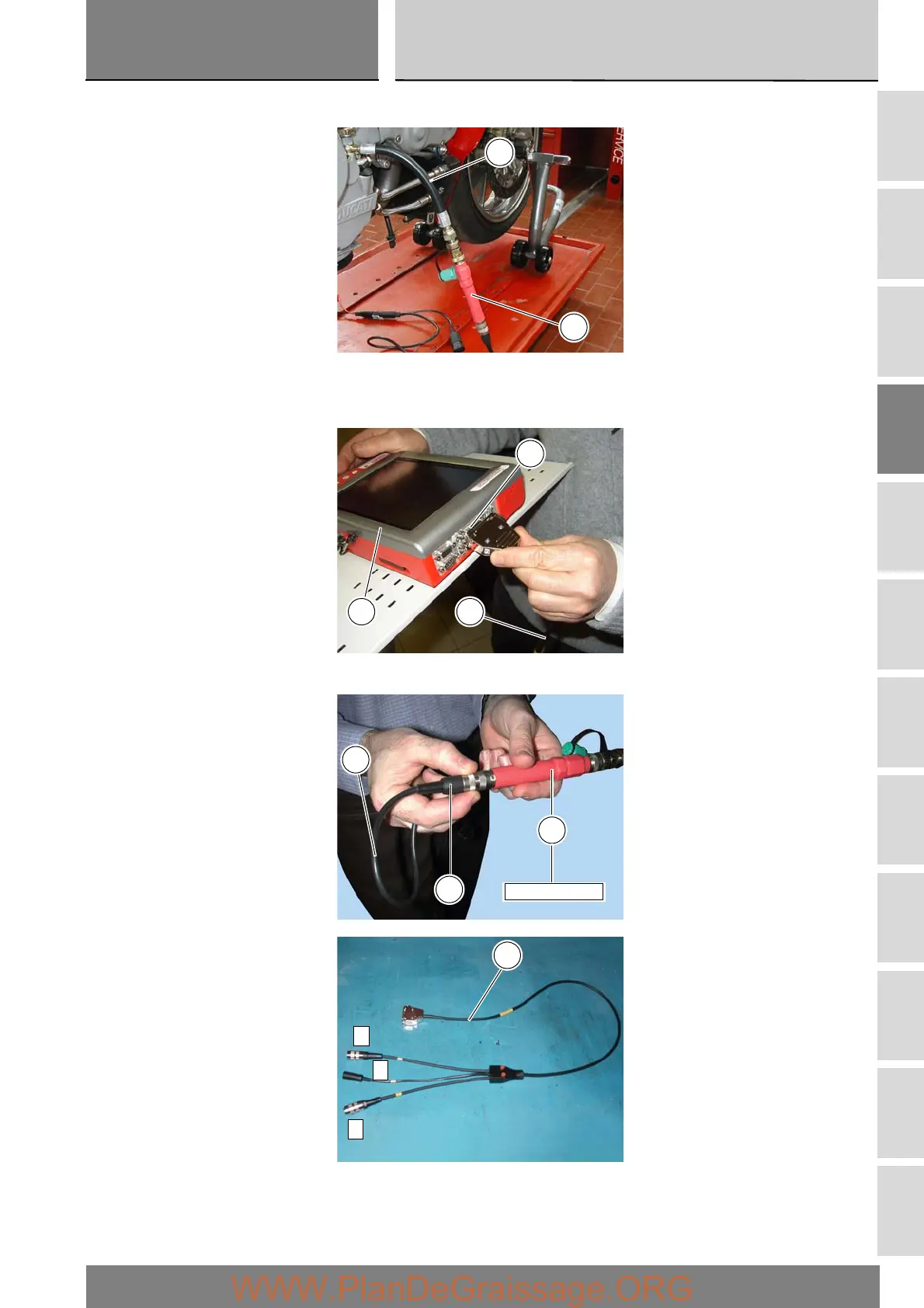

Connect the pressure sensor (5) to the pipe (12) to transform the pressure signal into an electrical signal.
Switch on the DDS tester (1); see paragraph entitled “Tester power supply”.
Connect the power and diagnostics cable (Measurement Module) (3) to the measurement module connector (B) on the DDS
tester (1).
Connect the pressure sensor (5) to socket (A) or (C) of the cable (3).
12
5
B
1 3
A
5
552.1.039.1A
3
A
B
C
3
