34 1098/1098S - M.Y. 2007 - edition 00
Fuel / Exhaust System

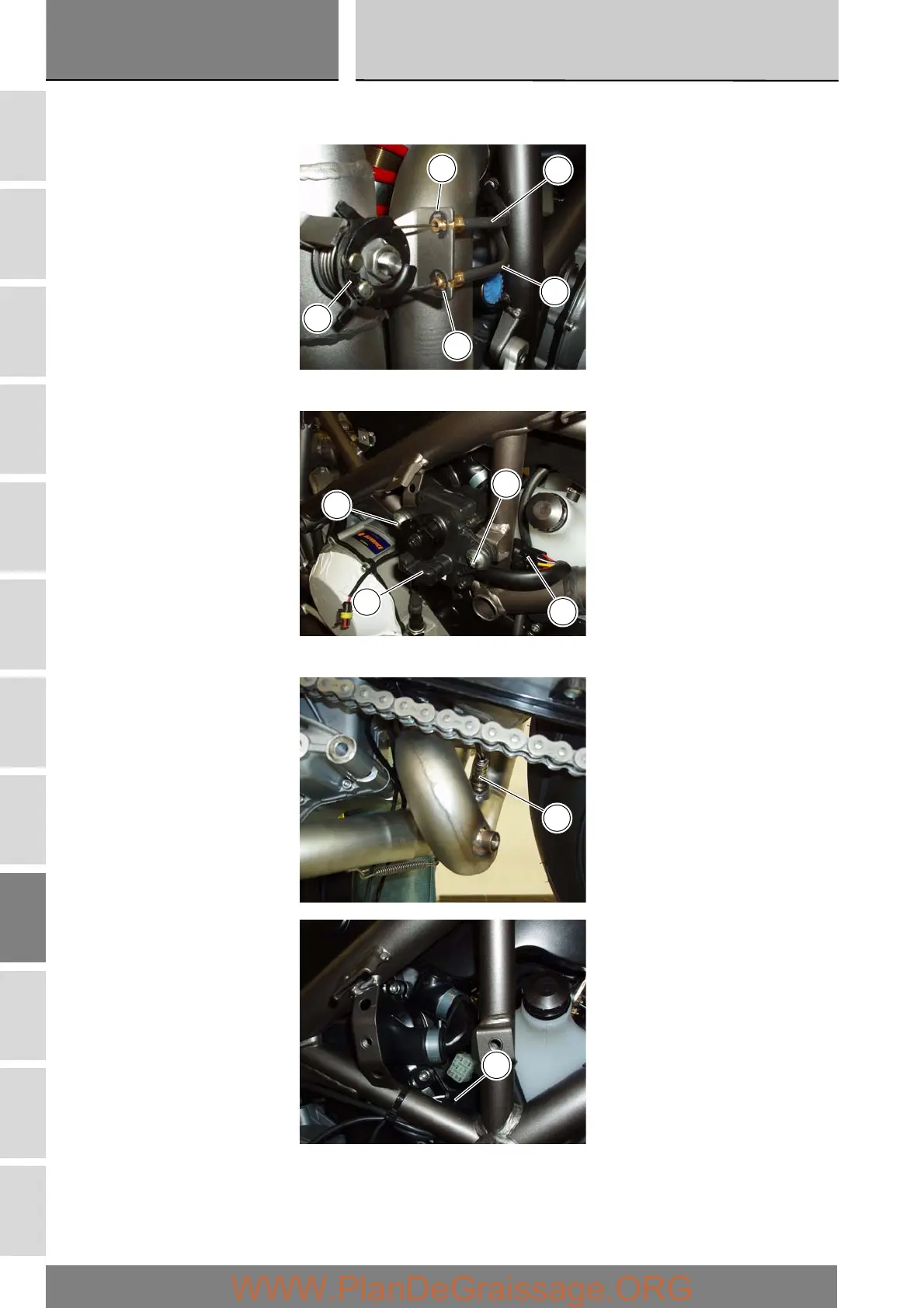

Remove the circlips (A) from the cables assembly (20) for the exhaust valve motor (B).
Remove the cables (20) from the exhaust valve (B).
Unscrew the bolts (33) to remove the exhaust valve motor (31) from the frame and disconnect the wiring (C) from the motor (31).
Disconnect the lambda sensor (11) from the wiring (D).
20
A
20
A
B
33
C
31
33
11
D
