Engine

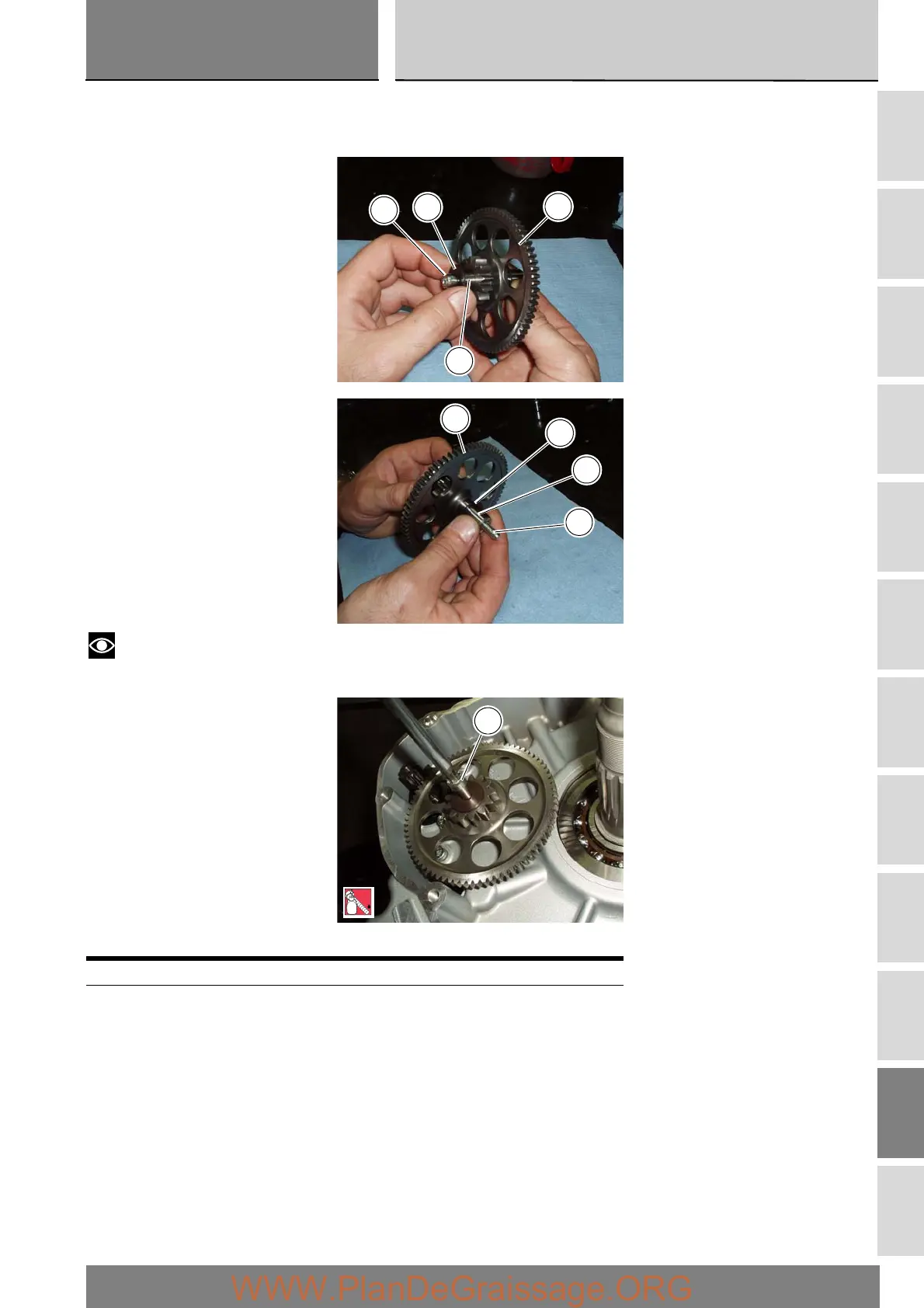

Refitting the starter motor idler gear
Refit the idler gear assembly (19), bolt (16), washers (18) and (20) and shaft (21) as indicated.
Notes
Apply the prescribed threadlocker to the bolt (16) and tighten to the specified torque.
Operation Section reference
Refit the left-hand crankcase cover and
alternator assembly
N8
16
18
19
21
20
21
16
19
2
LOCK
16
