Engine

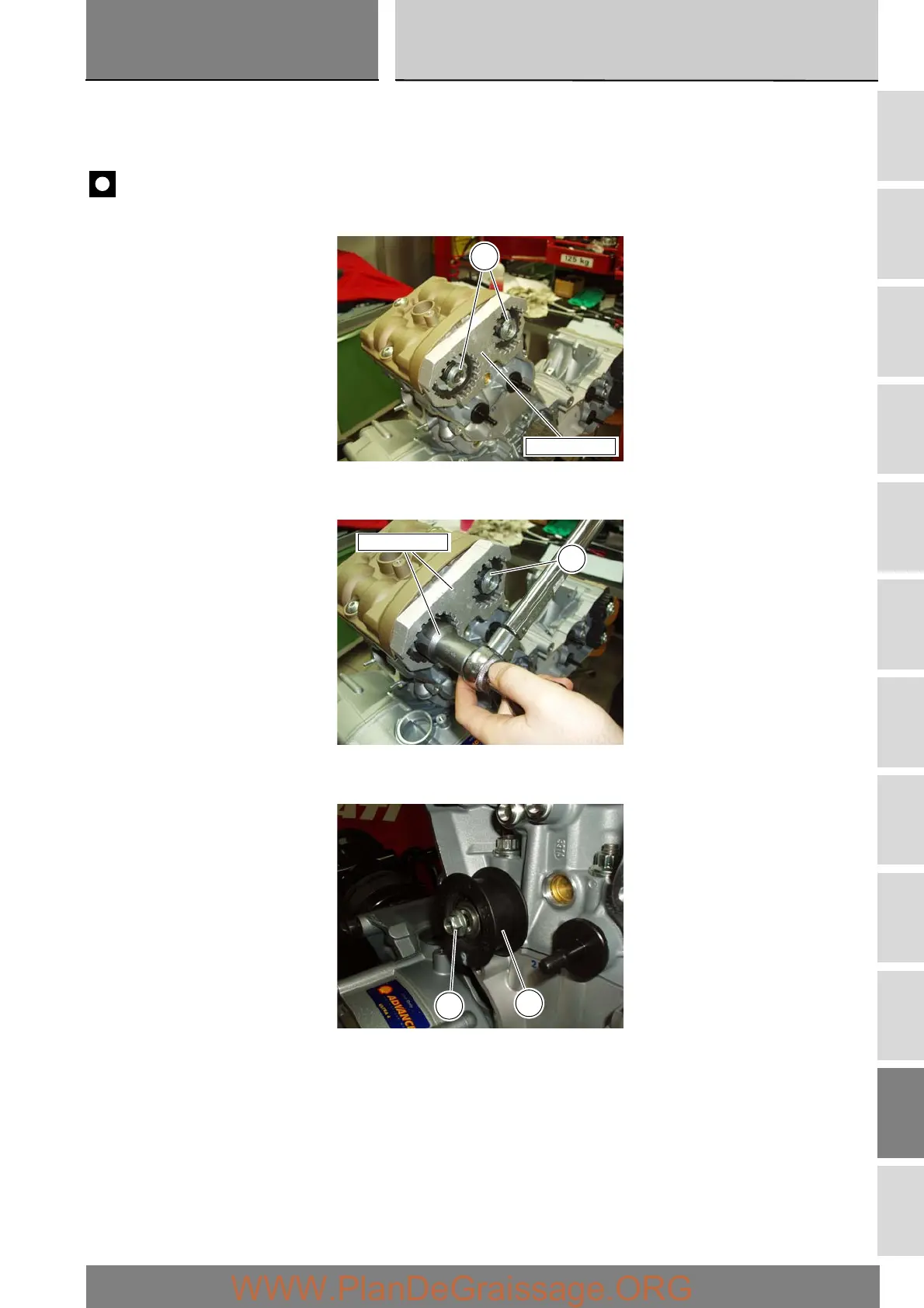

Install service tool no. 88713.1806 on the pulley to hold it against rotation.
Apply the recommended grease to the mating face of the nut (21).
Fit the nut (21).
Carry out the same operations on the other camshaft.
Important
Always fit new nuts on reassembly.
Using the socket supplied with the service tool no. 88713.1806 in combination with a torque wrench, tighten the nuts (21) to
their specified torque (Sect. C 3).
Fit the idler pulleys (13), complete with bearings, on to their mounting studs on the cylinder heads and tighten down the nuts (8)
to the specified torque (Sect. C 3).
21
88713.1806
21
88713.1806
13
8
