56 1098/1098S - M.Y. 2007 - edition 00
Use and maintenance

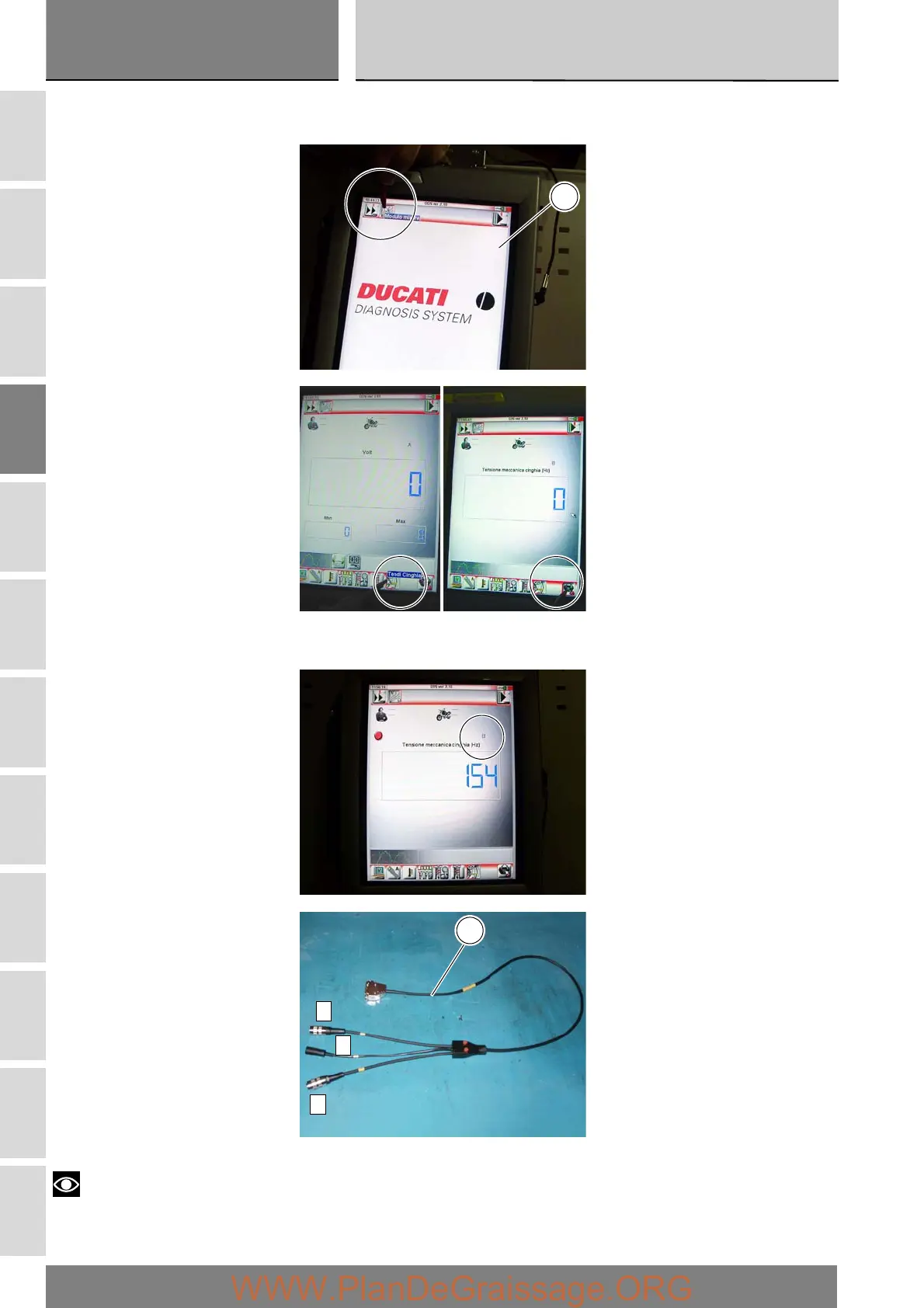

On the DDS tester (1), select the “Measurement module” function by pressing the corresponding icon; then press the
“Belt Tension” icon followed by the “Start” icon to access the “Mechanical belt tension” screen.
The socket to which the cable (Measurement Module) (3) is to be connected is indicated on the screen with a capital letter: A, B
or C.
Flick belt lightly with your finger and read the frequency value (Hz) on the DDS tester.
Notes
Do not flick the belt several times repeatedly, as the minimum time necessary for the DDS tester to take a reading is 1 second.
1
A
B
C
3
