section
E 1
4 1098/1098S - M.Y. 2007 - edition 00
Fairings

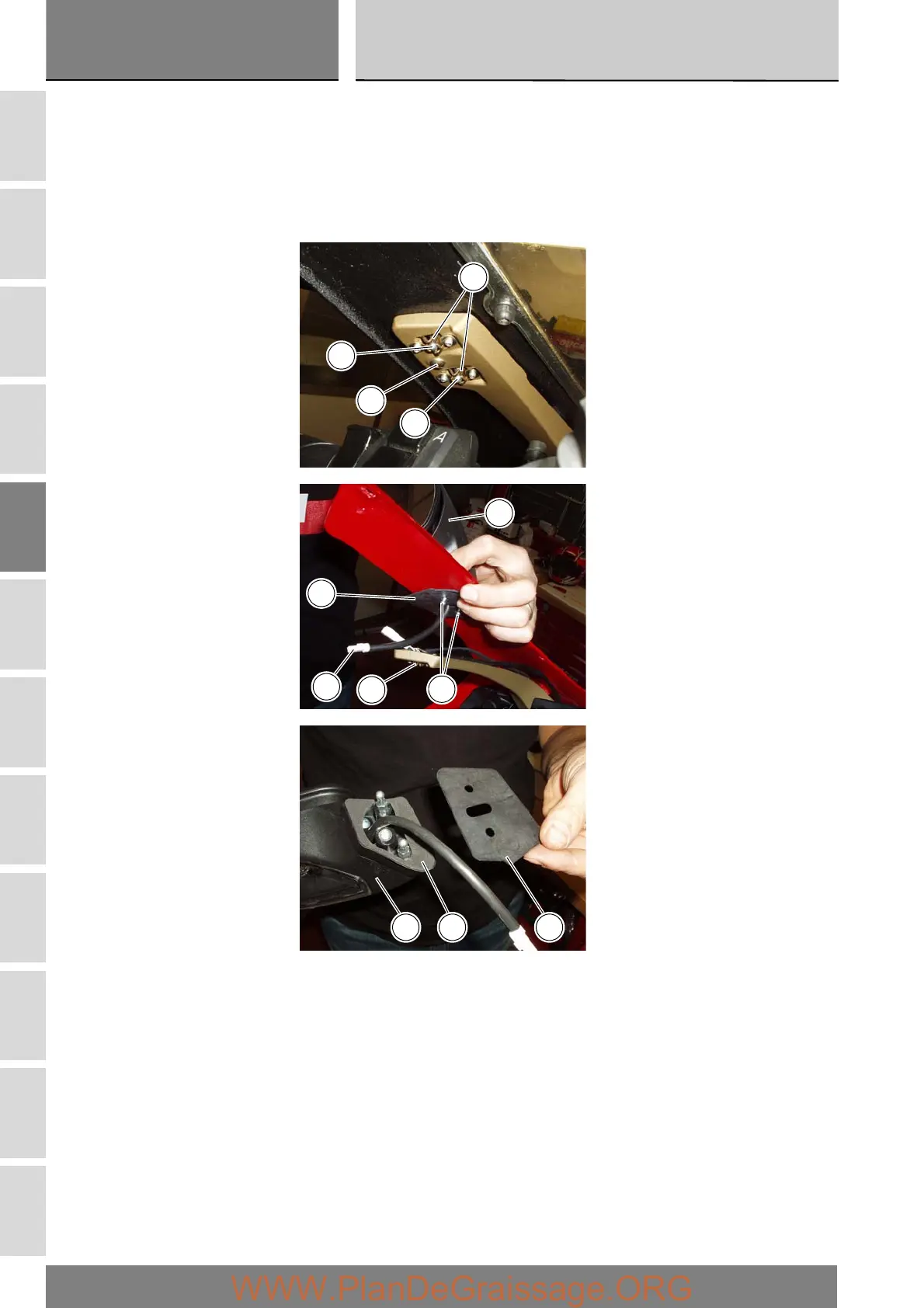

Removal of the rear-view mirrors
Unscrew the rear-view mirror (9) retaining bolt (4).
Release the rear view mirror (9) by disengaging the pins (B) from the clips (6).
Remove the lower rubber gasket (16) and disconnect the turn indicator wiring connector (A) from the wiring loom.
During removal, take care not to lose or damage the gasket (16).
Repeat the process for the other rear-view mirror.
Wrap the mirrors with protective materials to avoid damaging them.
4
B
B
6
A
6
B
9
16
9 15 16
