Controls - Devices
Adjusting the throttle cable
For instructions on how to adjust the throttle cable, see Sect. D 4, Adjusting the throttle cable.
Removal of the throttle cable

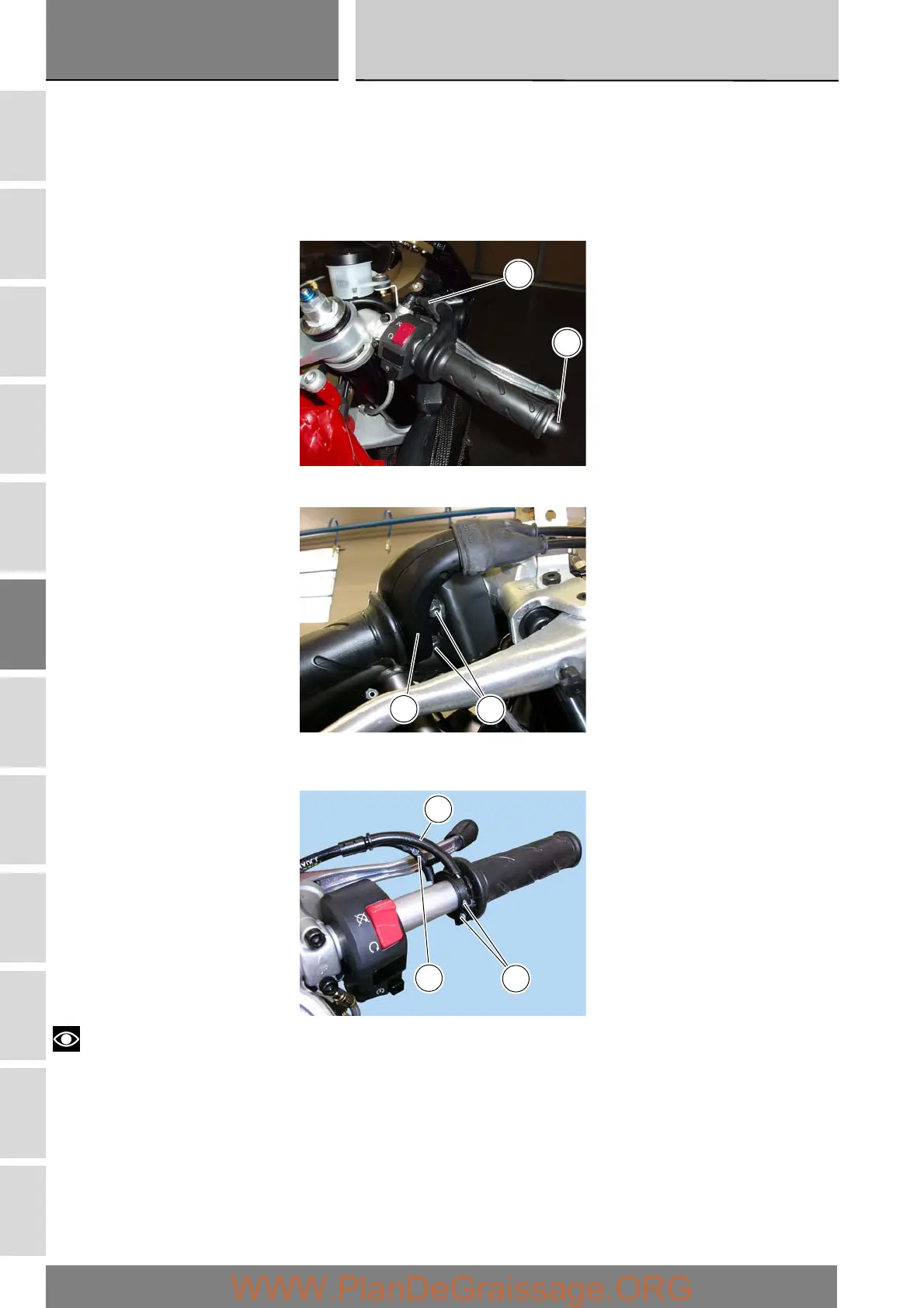

Remove the end plug (3) from the handlebar.
Peel back the rubber sleeve (A) protecting the throttle control cables.
Undo the screws (7) of the twistgrip (1) and open the housing.
Disconnect the throttle opening (5) and closing (6) cables by unhooking the cable ends (B) from their seats.
Remove the throttle twistgrip (1) from the right-hand handlebar.
Notes
To renew the throttle cables, disconnect them from the throttle body as described in Sect. L 6.
Replacement throttle cables are supplied complete with adjusters.
3
A
7
1
B
5
6
