section
G 3
291098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

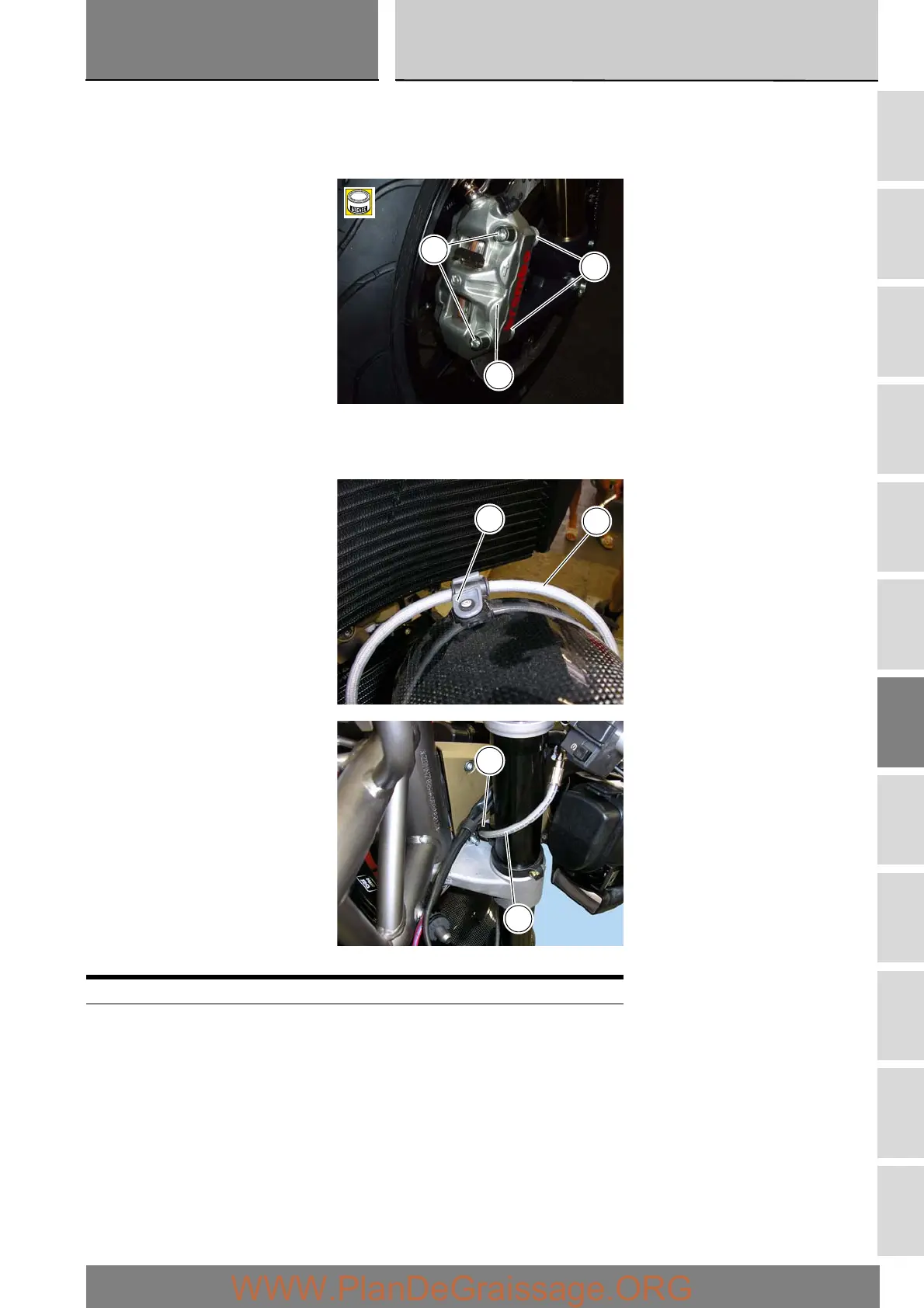

Fit the right caliper (10) over the disc.
Locate the hose (3) in the grommet (18).
Apply the recommended grease to the bolts (9).
Hand tighten the bolts (9) with their spacers (8) to secure the calipers to the fork legs.
Repeat the procedure to refit the other brake caliper.
Locate the brake master cylinder-lever assembly (Sect. F 3).
Insert the front brake hose (3) in the clip (20) located on the front mudguard and in the clamp on the bottom yoke (4).
Operation Section reference
Fill the brake circuit D 4
8
10
B
9
20
15
4
3
