G 5
40 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

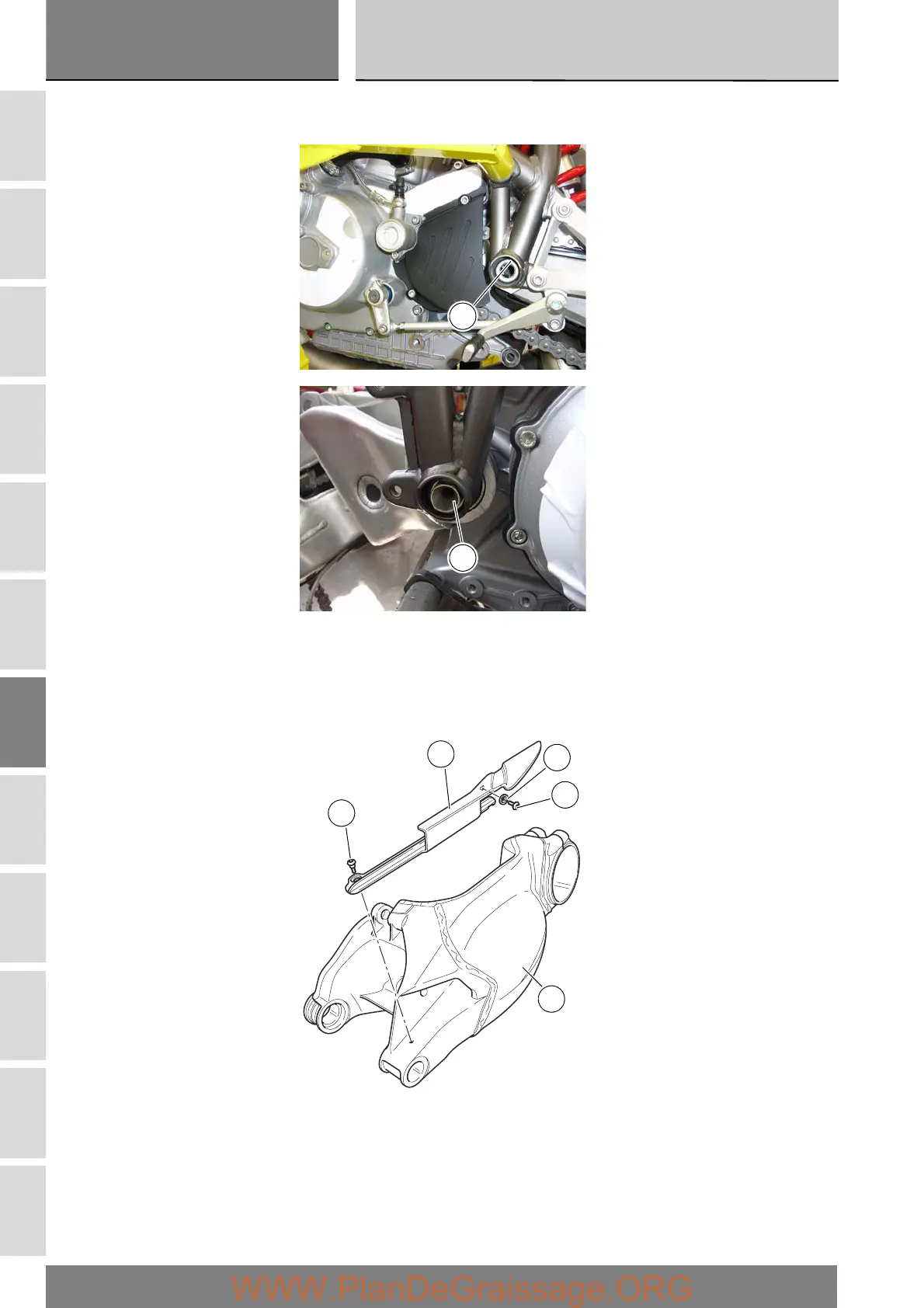

Restrain the swingarm pivot shaft (1) on the left side of the motorcycle while undoing the bolt (5) on the opposite side: recover
the washer (6).
Use the drift 88713.1074 to drive out the swingarm pivot shaft.
Remove the swingarm (4) assembly from the frame.
Detach the upper chain slider (7) from the swingarm (4) by unscrewing the bolts (9) and (10), recovering the washer (11).
1
5
9
7
10
11
4
