4 1098/1098S - M.Y. 2007 - edition 00
Frame
Removal of the handlebars
To remove the right handlebar, the following parts must be removed first:
To remove left handlebar, the following parts must be removed first:

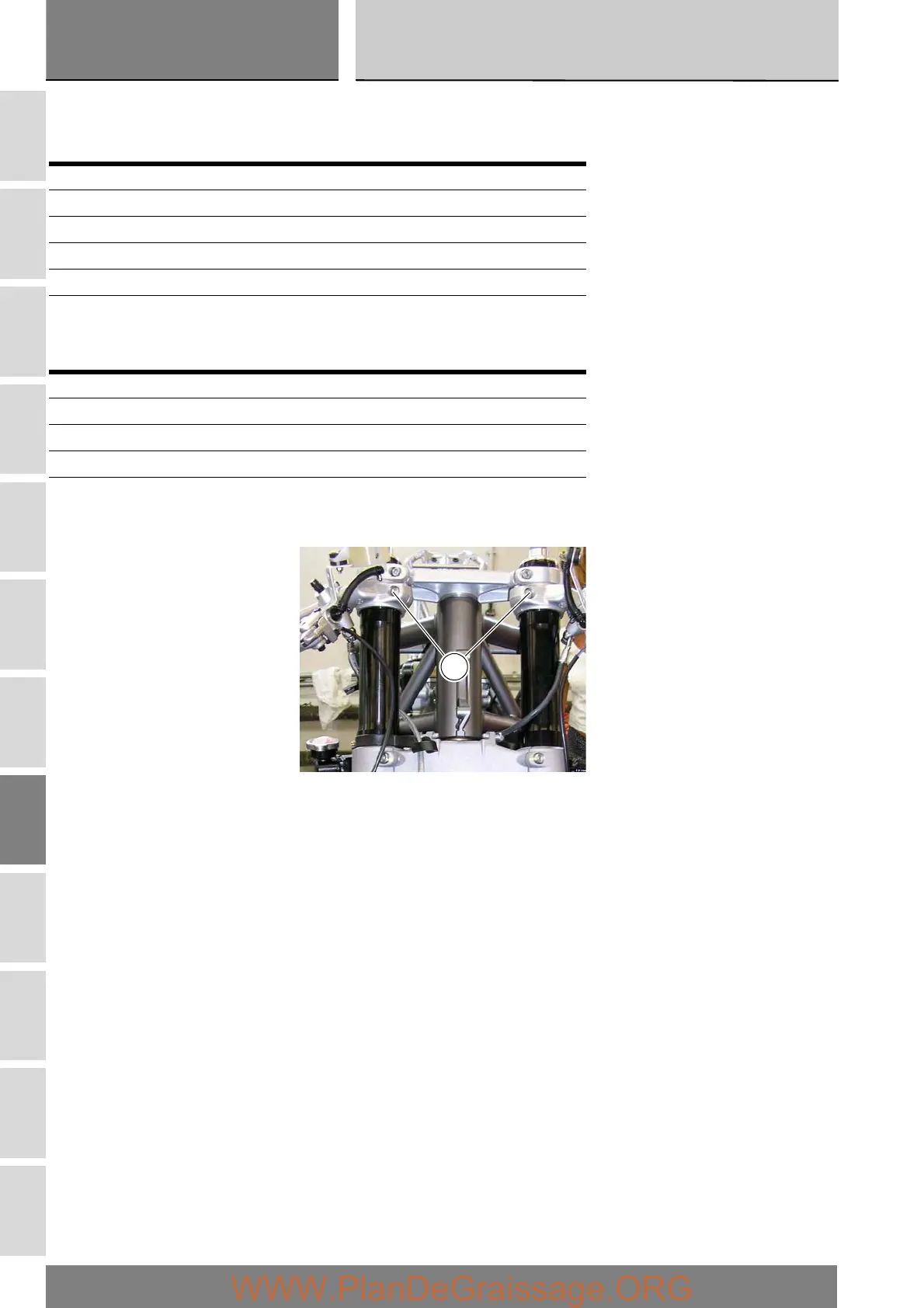

Loosen the bolts (5) securing the handlebar to the fork leg.
Open up the two parts of the mounting clamp and remove the handlebar form the fork leg.
Operation Section reference
Remove the headlight shell E 2
Remove the throttle twistgrip F 1
Remove the right-hand handlebar switch P 5
Remove the front brake lever F 3
Remove the top yoke H 2
Operation Section reference
Remove the headlight shell E 2
Remove left-hand handlebar switch P 5
Remove the clutch lever F 2
Remove the top yoke H 2
