Frame
Removal of the rear subframe
Disconnect all the wiring connections of the electrical components mounted on the subframe (Sect. P 1) and remove the silencer
(Sect. L 8).

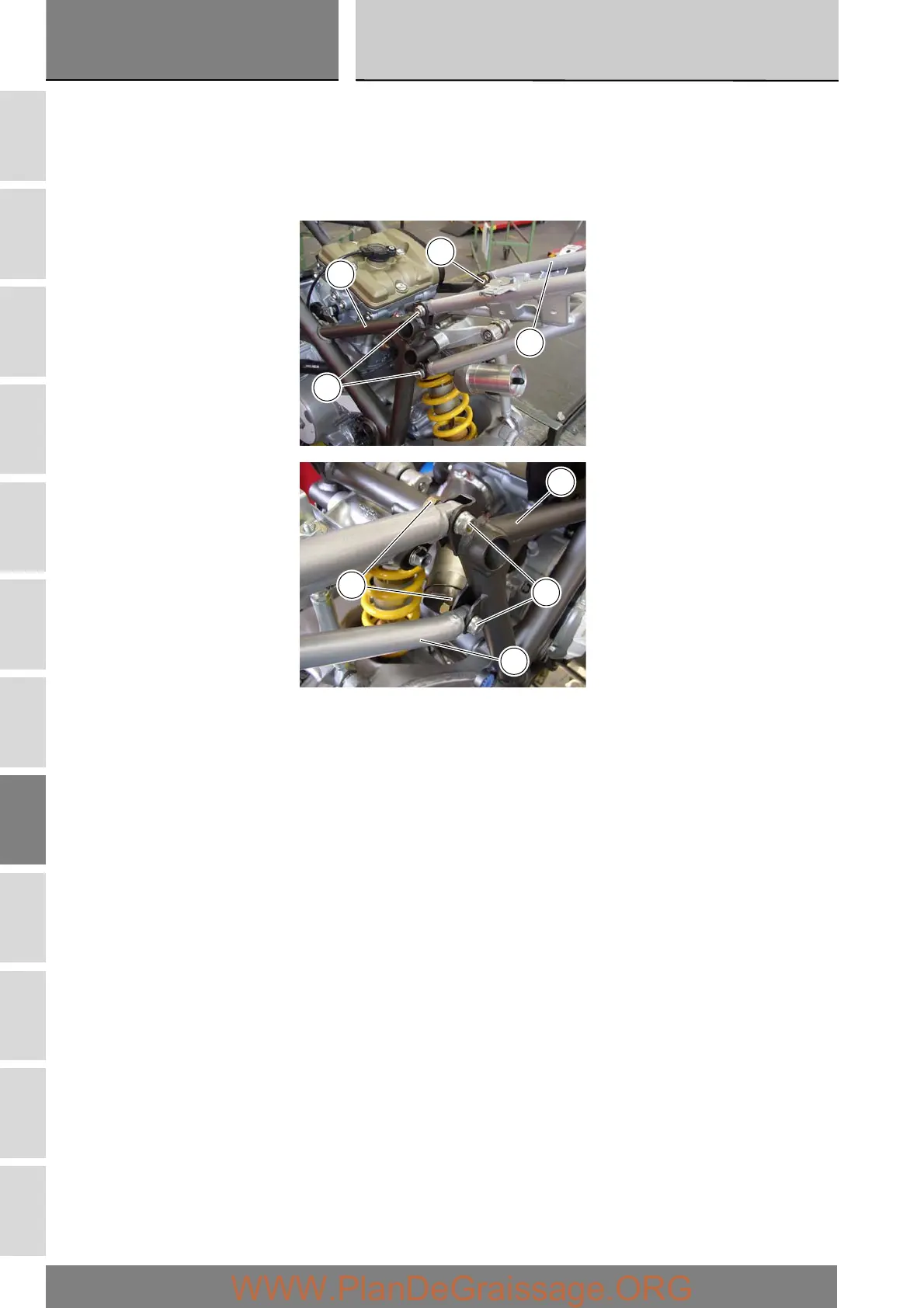

Unscrew the bolts (5) securing the rear subframe (3) to the frame (2).
Separate the rear subframe (3) from the frame (4).
Recover the nuts (6).
5
2
6
3
6
5
2
3
