Fuel / Exhaust System

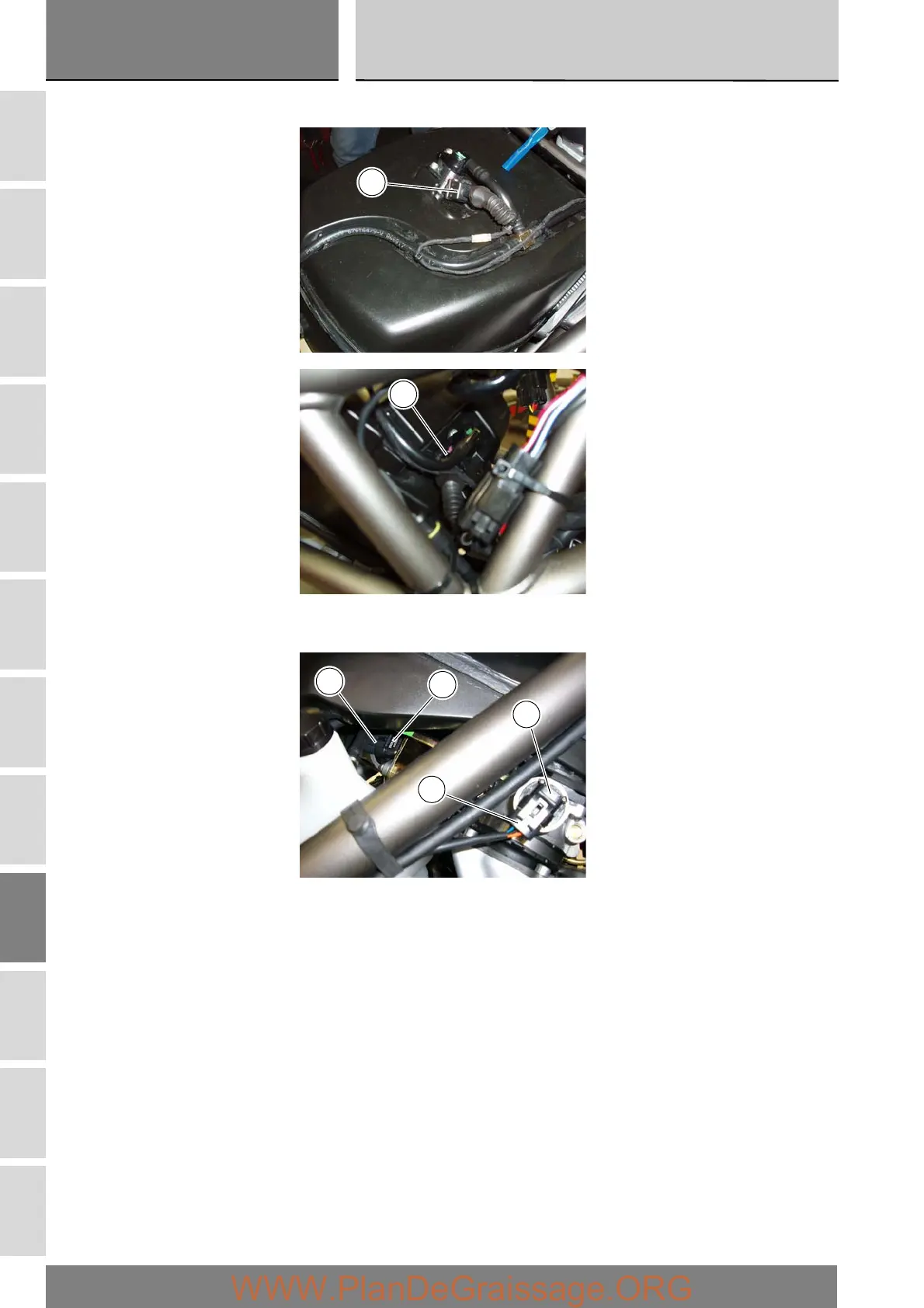

Reconnect the wiring connectors connecting the injectors (13) to the main wiring loom.
Connect the wiring connector (D) on the main wiring loom to the stepper motor (1).
Connect the wiring connector (E) to connect the main wiring loom to the throttle position sensor (F).
13
13
D
1
F
E
