Engine

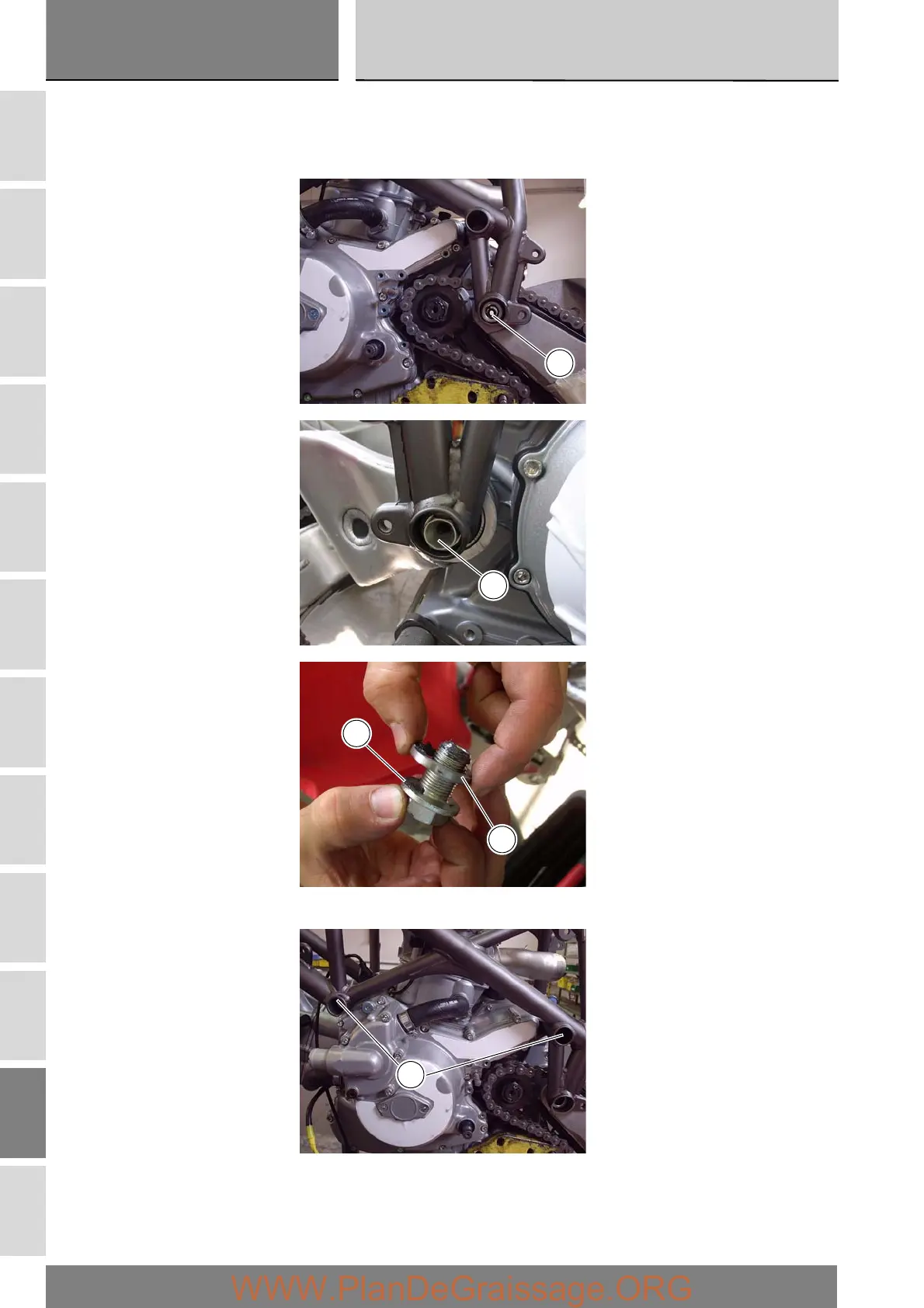

Restrain the swingarm pivot shaft (4) from the left side of the motorcycle while undoing the bolt (3) with washer (5) on the
opposite side.
Use the drift 88713.1074 to fully extract the swingarm pivot shaft.
This frees the swingarm from the engine and therefore it can be left attached to the frame.
Remove the two upper bolts (1).
Withdraw the complete engine assembly from the frame by lowering it and pushing it forwards.
