section
N 2.2
171098/1098S - M.Y. 2007 - edition 00
Engine

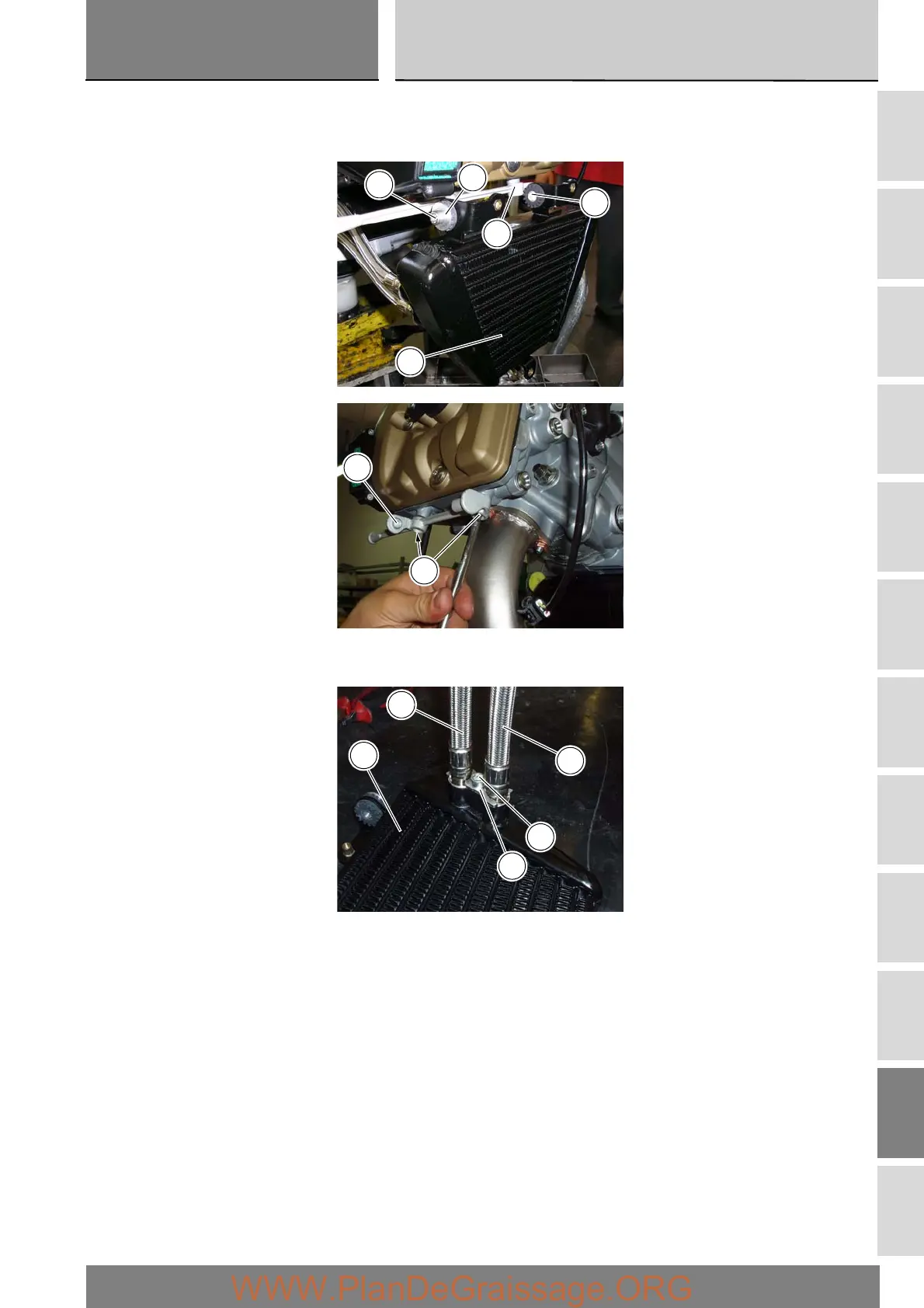

Unscrew and remove the bolt (11) with the spacer (3) securing the oil cooler to the support (10). Remove the oil cooler,
withdrawing the pin (B) of the support (10).
The support (10) can now be removed by unscrewing the bolts (9).
Unscrew the bolt (9) securing the plate (8) to the oil cooler (1).
Unscrew the feed and return hoses (7) from the oil cooler (1).
11
B
3
10
1
10
9
1
7
9
8
7
