section
N 3.2
22 1098/1098S - M.Y. 2007 - edition 00
Engine

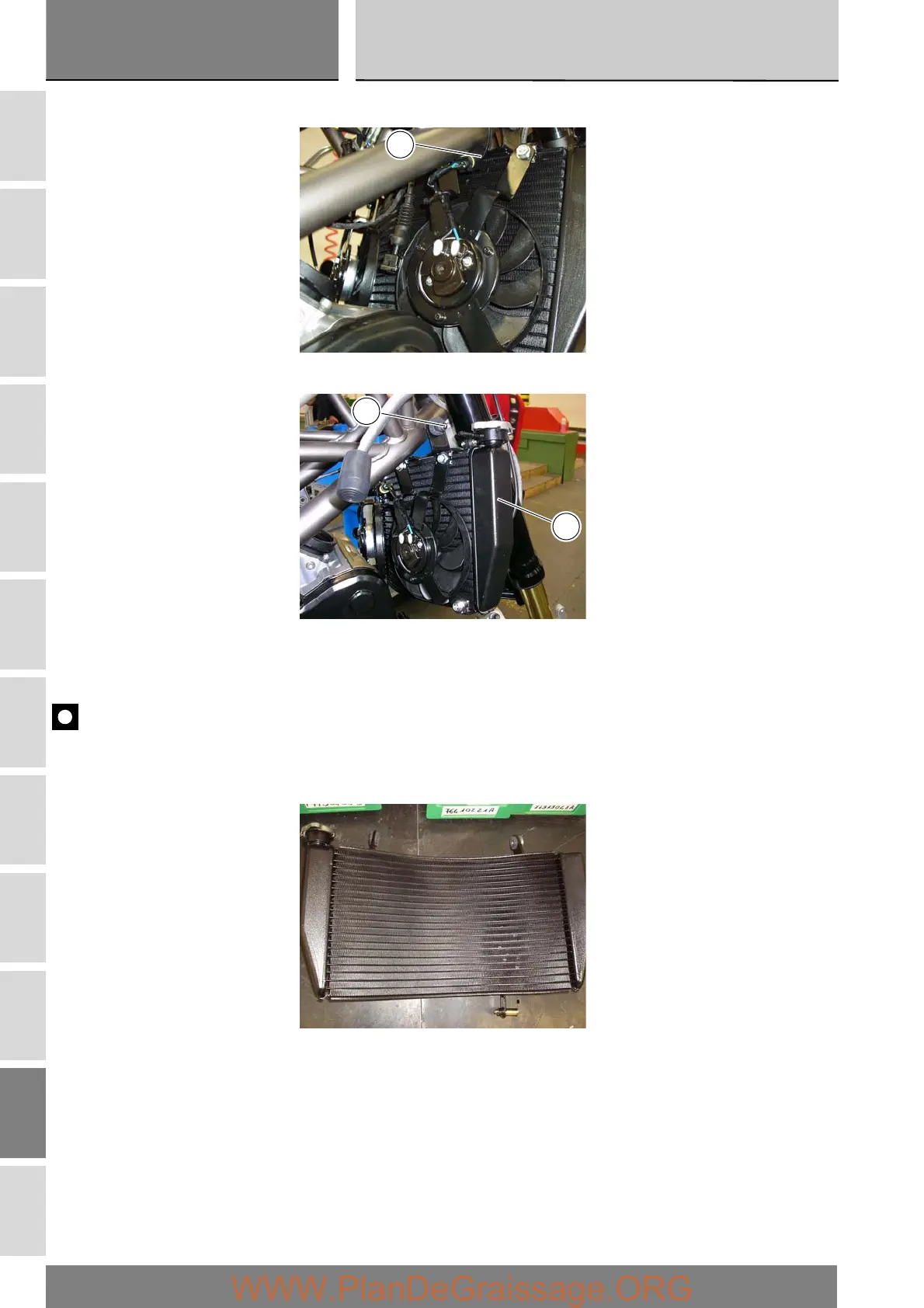

Disconnect the wiring connectors of the main wiring loom (C) from both fans.
Remove the radiator (10) from the motorcycle, withdrawing it from the pin (D), on the upper right-hand side of the frame.
Radiator inspection
Make a visual inspection of the radiator. If it shows signs of damage or leaks, the radiator must be renewed.
Check also that the air flow through the radiator core is not obstructed by leaves, insects, mud, etc.
Important
An excessively high coolant temperature may be caused by partial obstruction of the radiator core.
Carefully check the condition of the radiator core.
C
D
10
