N 5
110 1098/1098S - M.Y. 2007 - edition 00
Engine

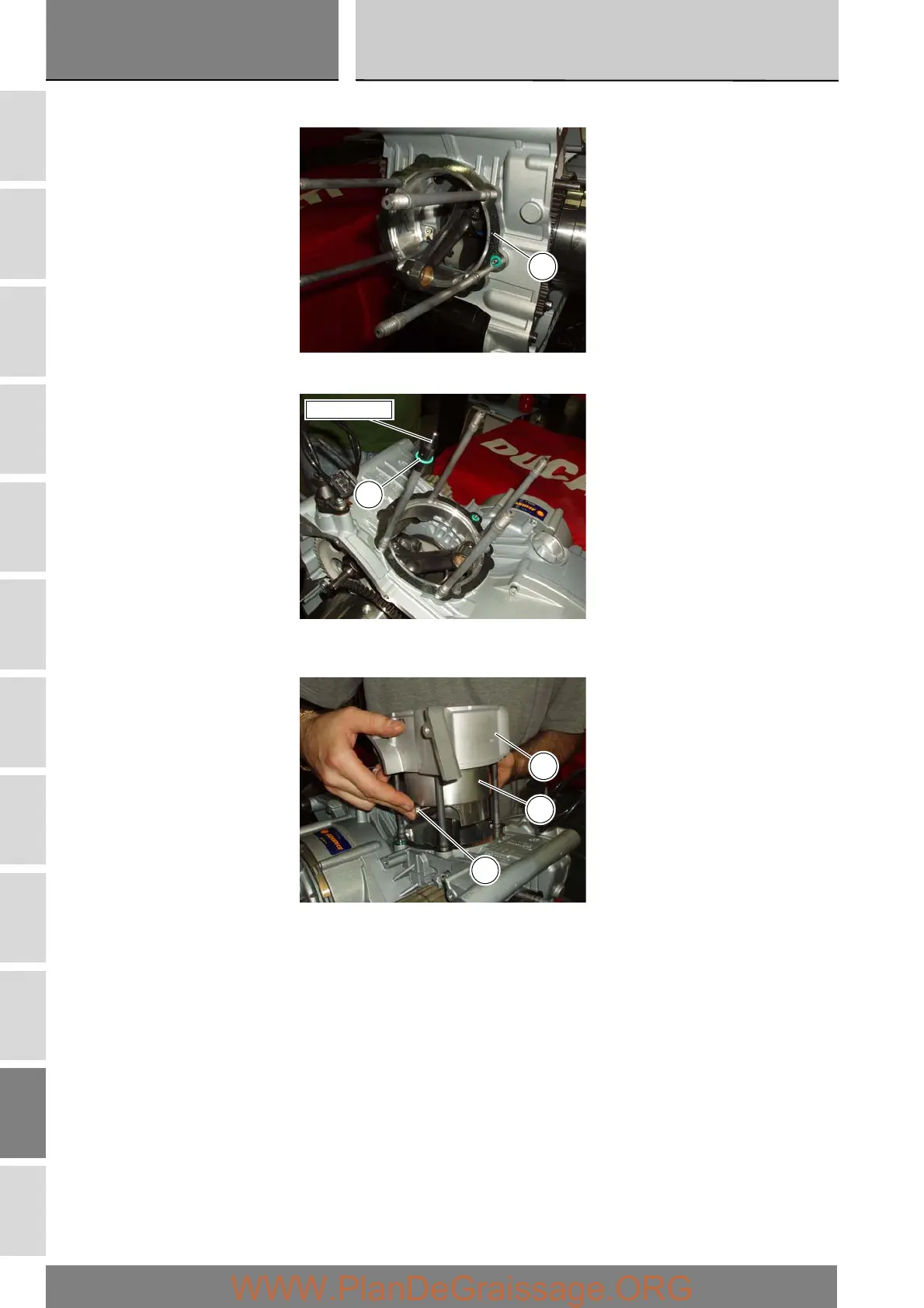

Apply sealant to the gasket (5) then locate the gasket on the crankcase.
Using the cap 88713.1920, fit the O-rings (A) on each stud and guide them into their seats in the crankcase.
Bring the connecting rod small end close to TDC and slide the barrel-piston assembly (1-10) onto the crankcase studs.
Push the connecting rod small end into the piston close to the gudgeon pin (3) bore. Lubricate and insert the gudgeon pin.
5
A
88713.1920
10
1
3
