Engine
Disassembly of the clutch
Notes
For clarity, the figures show the engine removed from the frame.

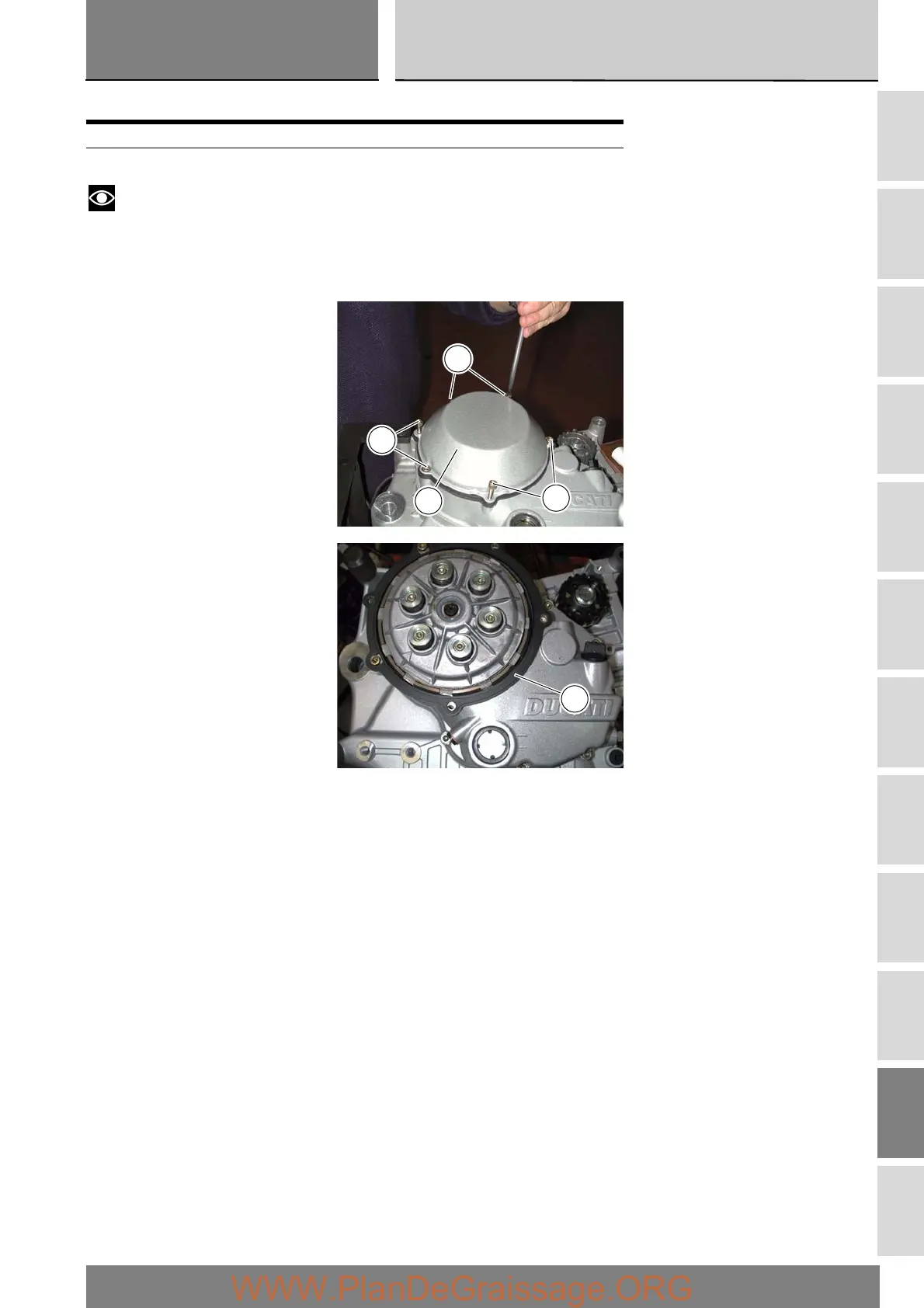

Undo the four retaining bolts (23) and the two retaining bolts (24) from the clutch cover (22).
Remove the cover and the sound deadening gasket (21).
Operation Section reference
Remove the side fairings E 2
22
23
24
23
21
