N 6.1
124 1098/1098S - M.Y. 2007 - edition 00
Engine

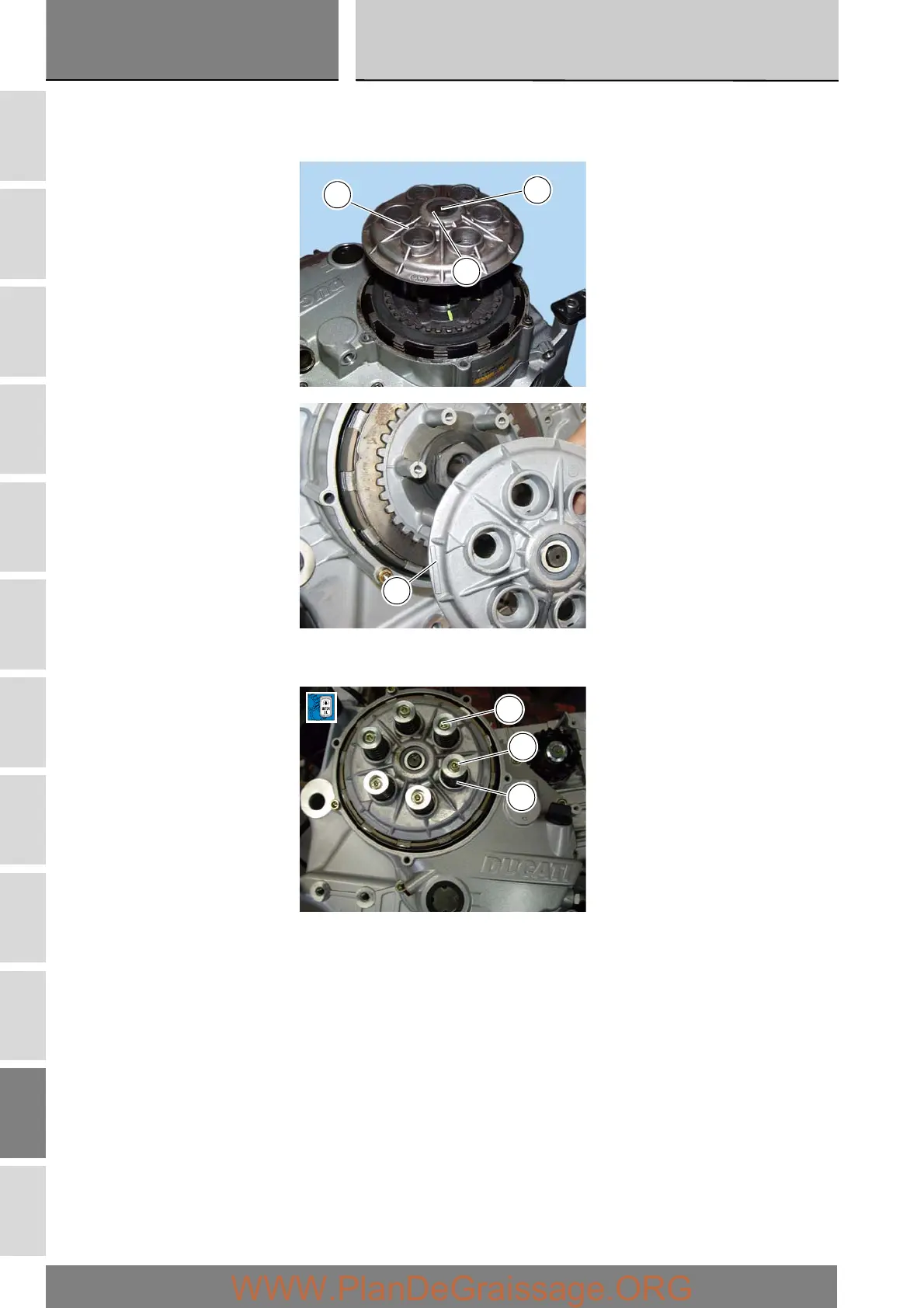

Insert the clutch lifter (3) in the bearing (14) of the pressure plate (12).
Install the pressure plate (12) so that the mark on the end of one of the clutch spring posts is aligned with the marks on the
corresponding pressure plate hole, indicated by the triangle.
Fit a spring (1) and collar (2) into each recess and fit the retaining screws (4) after lubricating their threads with engine oil.
Tighten the bolts (4) gradually in a crosswise pattern and then tighten to the specified torque (Sect. C 3).
3
12
14
12
4
2
1
