section
N 6.2
132 1098/1098S - M.Y. 2007 - edition 00
Engine

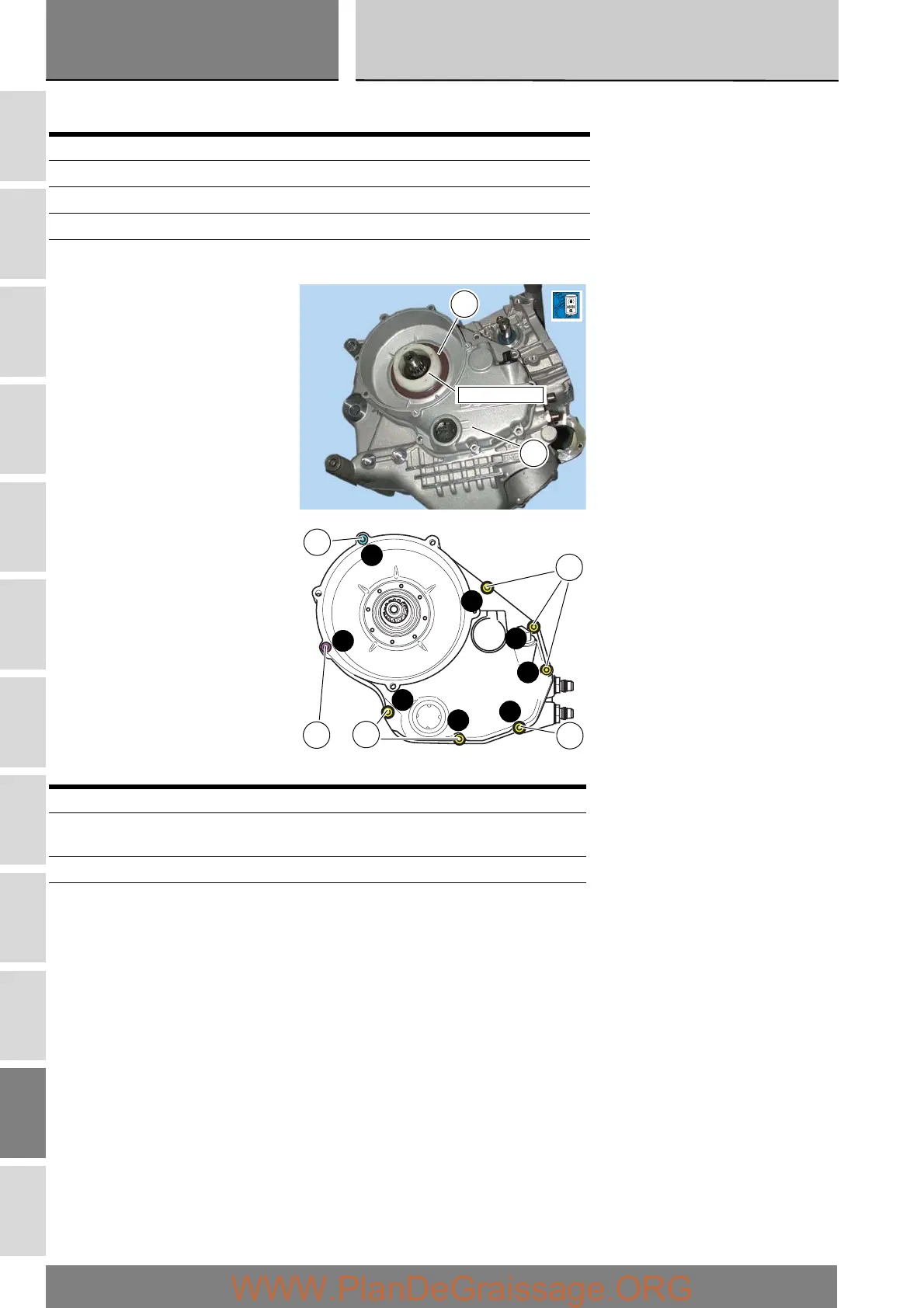

Tighten the bolts (5), (15) and (19) to the specified torque (Sect. C 3) following the numbered sequence:
Retaining bolts
See Type Qty.
5 M6x25 hex socket bolts 6
19 M6x65 hex socket bolts 1
15 M6x70 hex socket bolts 1
Operation Section reference
Refit the clutch drum, clutch centre and
the clutch plate pack
N6.1
Top up the engine oil D 4
Refit the side fairings E 2
88700.5665
14
6
4
8
7
2
6
3
1
5
19
15
5
5
5
