Engine

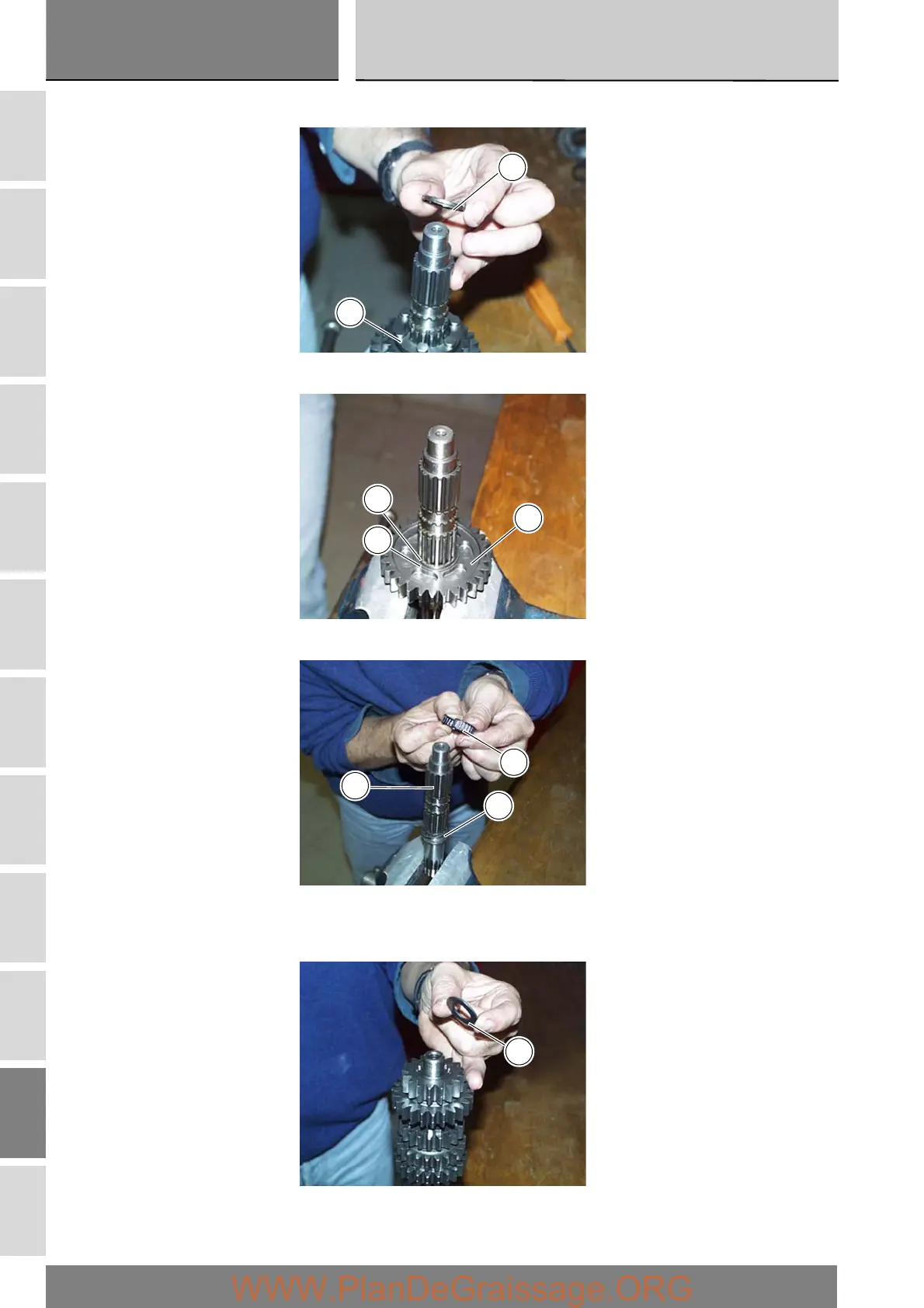

Remove the circlip (7) and remove the sixth speed driven gear (23).
Remove the circlip (7) and withdraw the splined washer (6) and the second speed driven gear (24).
Withdraw the roller cage (4) and the shim (3). All the components have thus been removed from gearbox output shaft (25).
Disassembly of the gearbox input shaft
Remove the chain-side shim (11) and the clutch-side shim (1) from the input shaft.
23
7
24
7
6
4
3
25
11
