P 5
731098/1098S - M.Y. 2007 - edition 00
Electric system

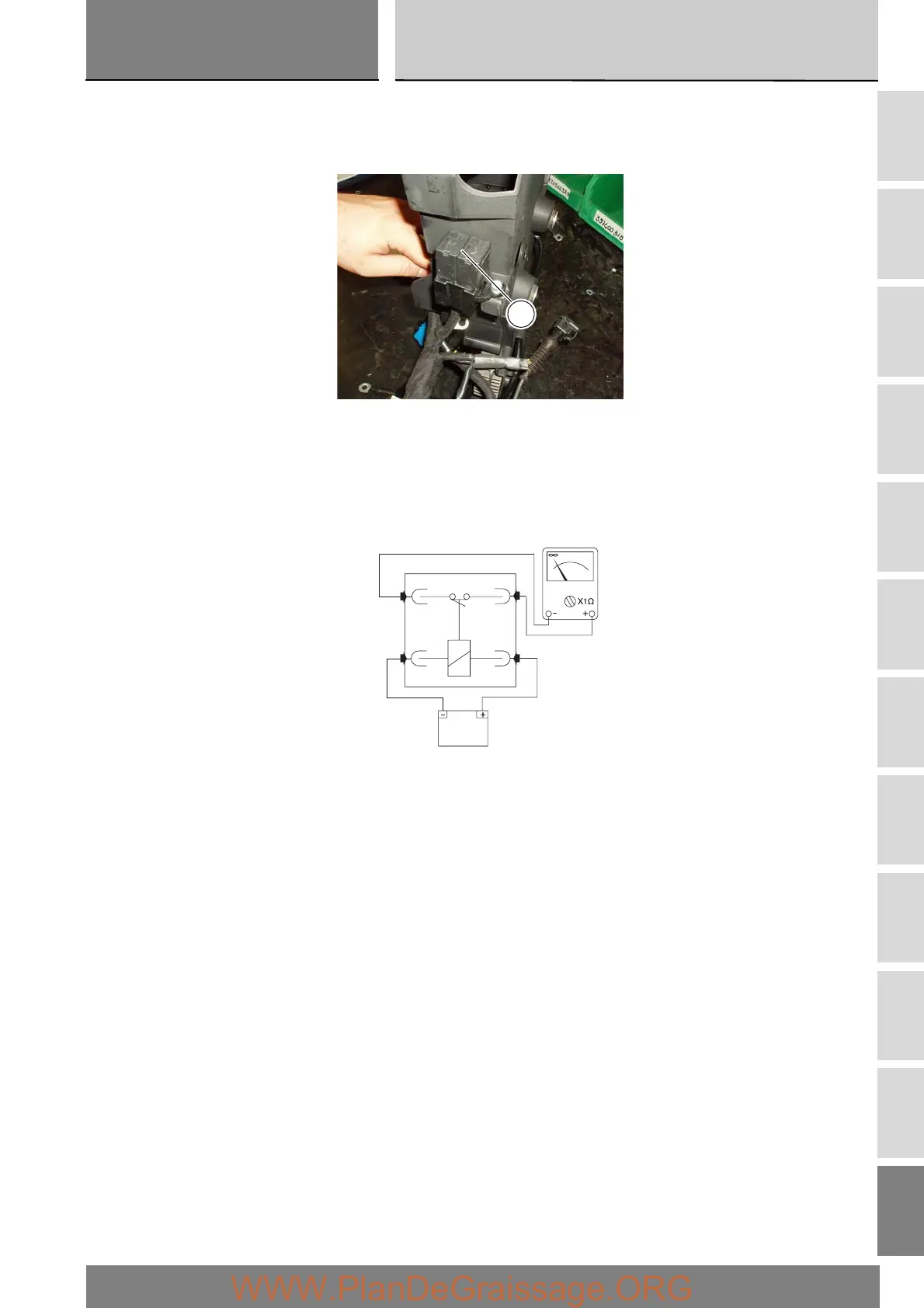

Fan relay
The fan relay (7) is located on the right-hand side of the battery support.
To gain access to the fan relay, first remove the left-hand side fairing (Sect. E 2).
Checking operation of the fan relay
Disconnect the relay from the electrical system and apply 12 V (battery voltage) between the small contacts: you should hear a
click that confirms that the internal electromagnet has switched.
Connect a multimeter to the big contacts to check for electrical continuity (Sect. P 9). The resistance reading should be near zero
and, if present, the continuity sound signal should be emitted. If this does not occur, the part must be renewed.
7
12V
