Instrument panel
Remove the headlight shell (Sect. E 1, Removal of the headlight shell).

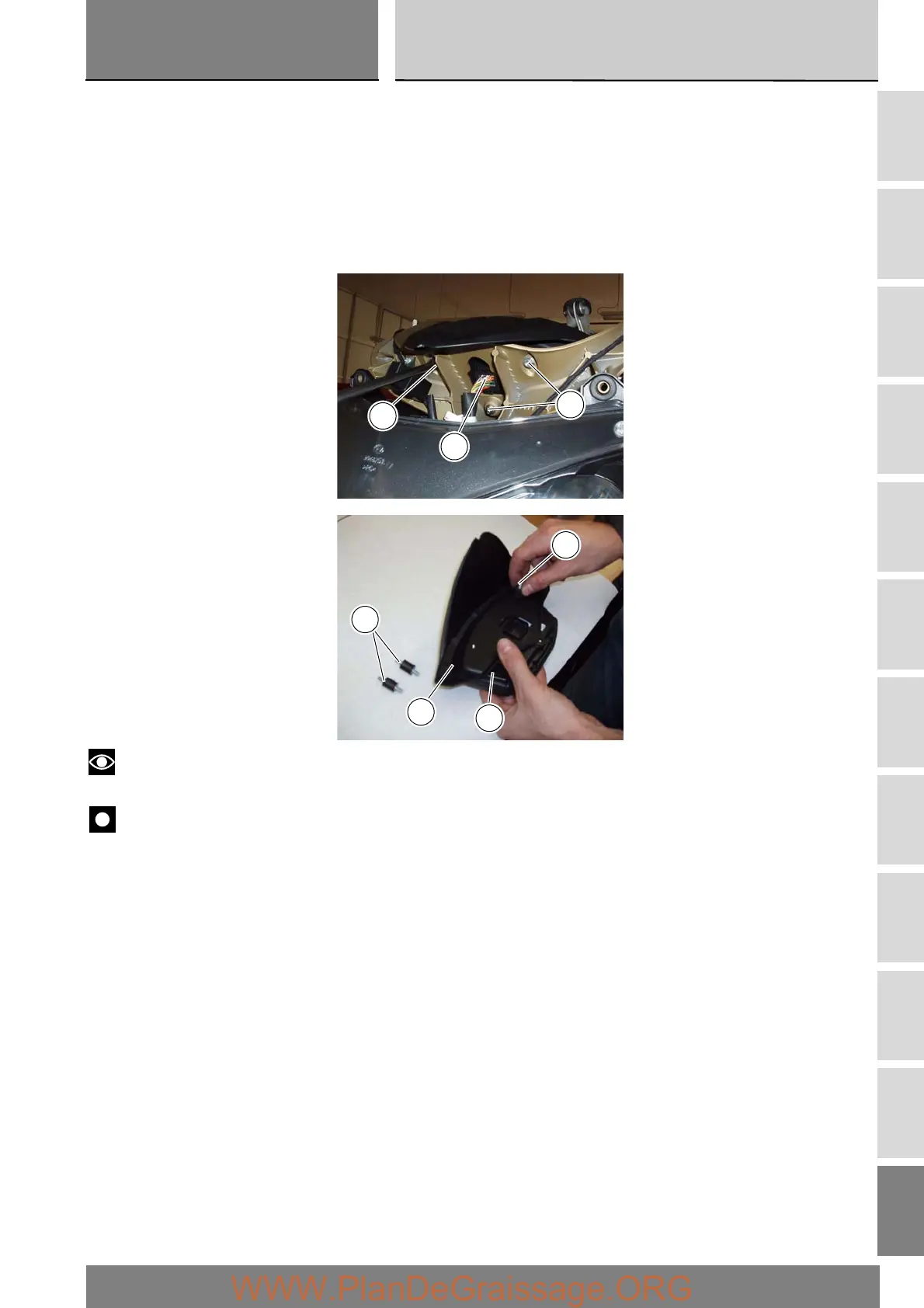

Unscrew the nuts (1). Disconnect the wiring to the instrument panel (2).
Remove the instrument panel (3) complete with the cover (4).
To remove the cover (4) from the instrument panel, remove the rubber mountings (5).
On refitting, tighten the nuts (1) to the specified torque (Sect. C 3, Frame tightening torques).
Notes
The instrument panel is supplied as a single component; its internal components cannot be renewed separately.
Important
Whenever the instrument panel is renewed, the ignition key programming procedure must be repeated.
