Use and maintenance
Operate the throttle to make sure the inner cable slides smoothly inside the outer cable. If you feel excessive resistance or
stiffness, renew the cable.

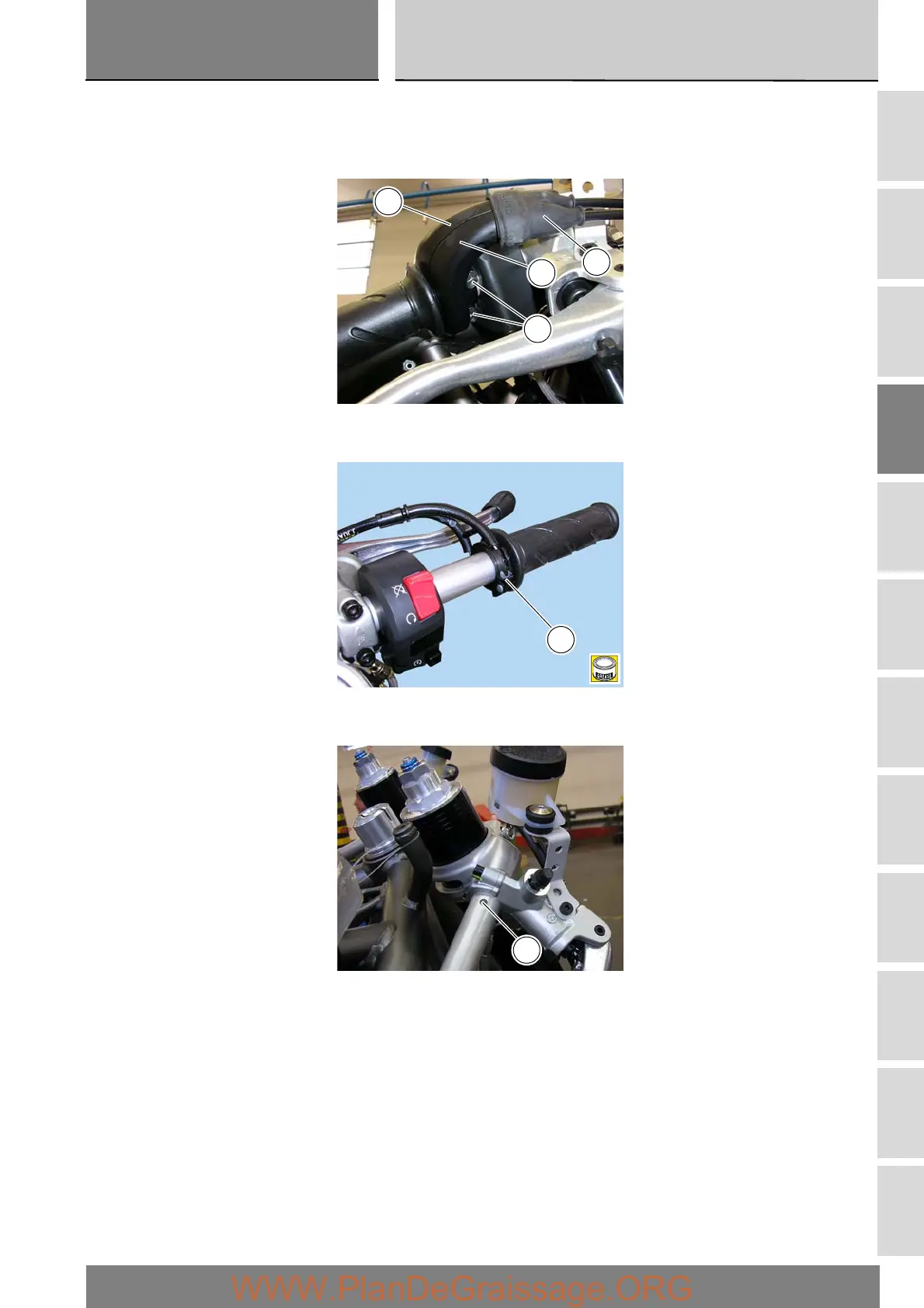

To lubricate the throttle twistgrip, peel back the rubber sleeve (A), unscrew the screws (3) and remove the twistgrip housings (4)
and (5).
Lubricate the ends of the cable and the race (B) with the recommended grease.
When refitting the cover, make sure that the cables are correctly positioned in the race (B).
Locate the housings (4) and (5) in the handlebar hole (C).
Secure the housings (4) and (5) with screws (3) tightened to the specified torque (Sect. C 3).
