C
HAPTER
14
| Basic Administration Protocols
Remote Monitoring
– 385 –
â—† The information collected for each entry includes:
input octets, packets, broadcast packets, multicast packets, undersize
packets, oversize packets, CRC alignment errors, jabbers, fragments,
collisioins, drop events, and frames of various sizes.
PARAMETERS
These parameters are displayed in the web interface:
◆ Port – The port number on the switch.
â—† Index - Index to this entry. (Range: 1-65535)
â—† Owner - Name of the person who created this entry. (Range: 1-127
characters)
WEB INTERFACE
To enable regular sampling of statistics on a port:
1. Click Administration, RMON.
2. Select Configure Interface from the Step list.
3. Select Add from the Action list.
4. Click Statistics.
5. Select a port from the list as the data source.
6. Enter an index number, and the name of the owner for this entry
7. Click Apply

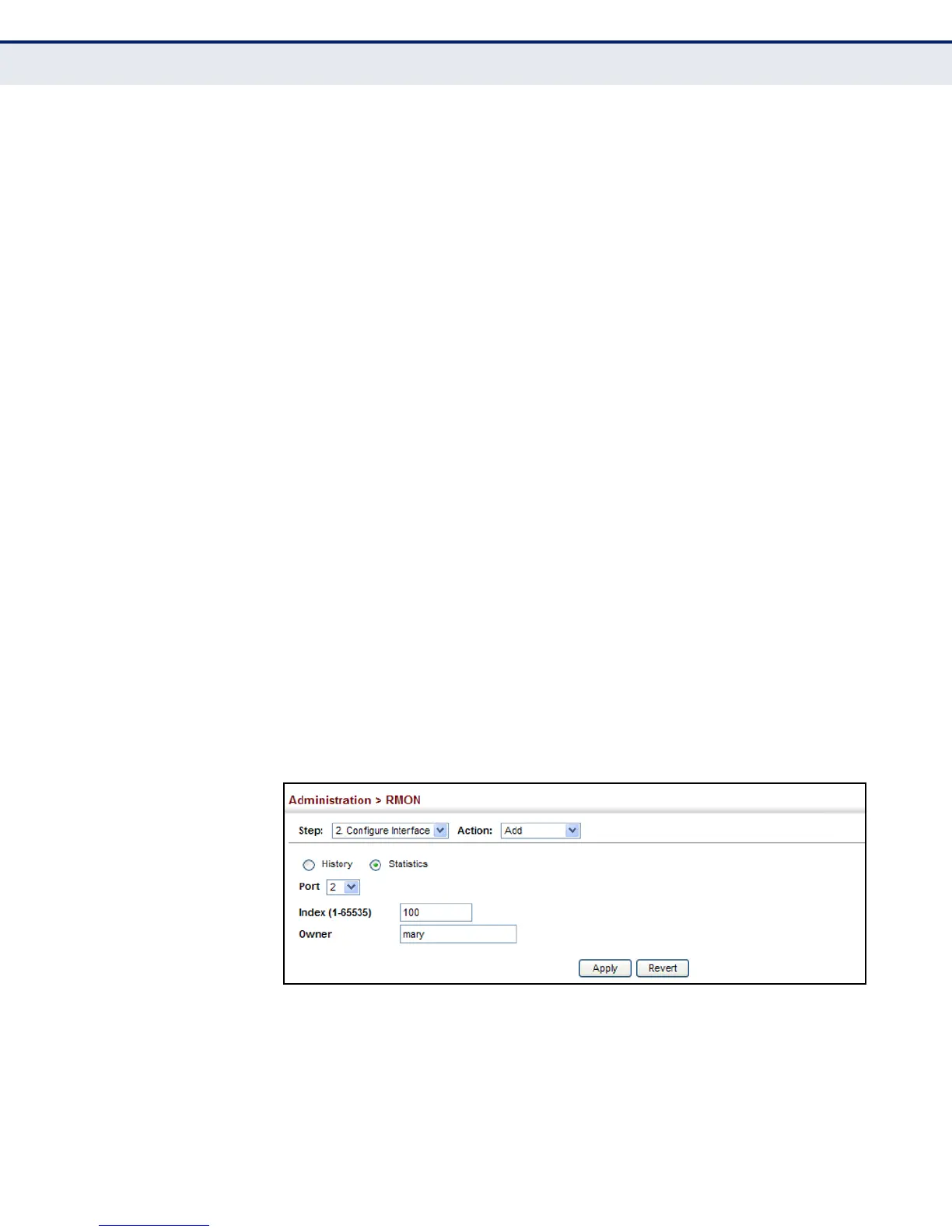

Figure 222: Configuring an RMON Statistical Sample
To show configured RMON statistical samples:
1. Click Administration, RMON.
2. Select Configure Interface from the Step list.
3. Select Show from the Action list.
