Edge-Core ECS4610-24F User Manual

C HAPTER 14 | Basic Administration Protocols
Remote Monitoring
– 386 –
4. Select a port from the list.
5. Click Statistics.

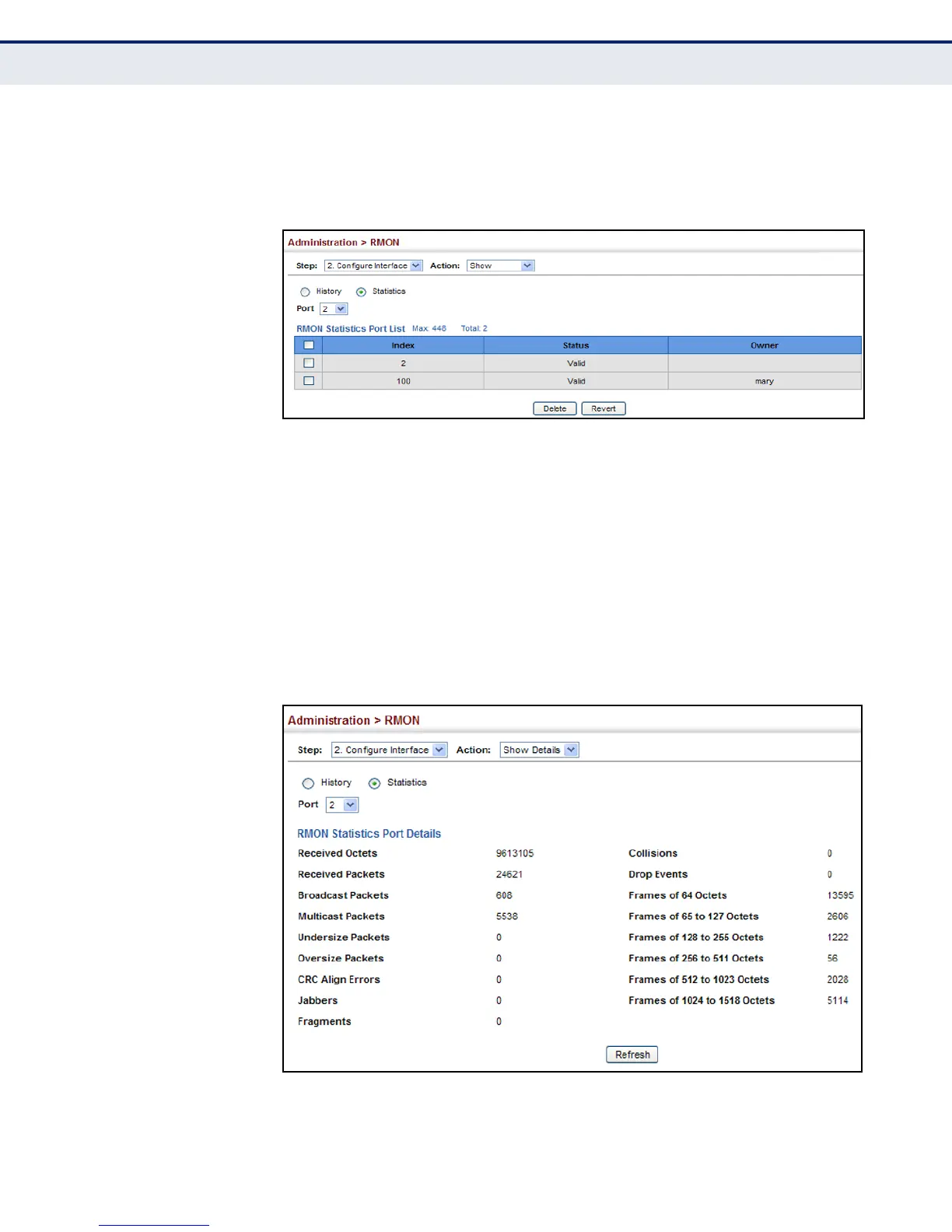

Figure 223: Showing Configured RMON Statistical Samples
To show collected RMON statistical samples:
1. Click Administration, RMON.
2. Select Configure Interface from the Step list.
3. Select Show Details from the Action list.
4. Select a port from the list.
5. Click Statistics.
Figure 224: Showing Collected RMON Statistical Samples
