C
HAPTER
20
| Unicast Routing
Configuring the Open Shortest Path First Protocol (Version 2)
– 530 –

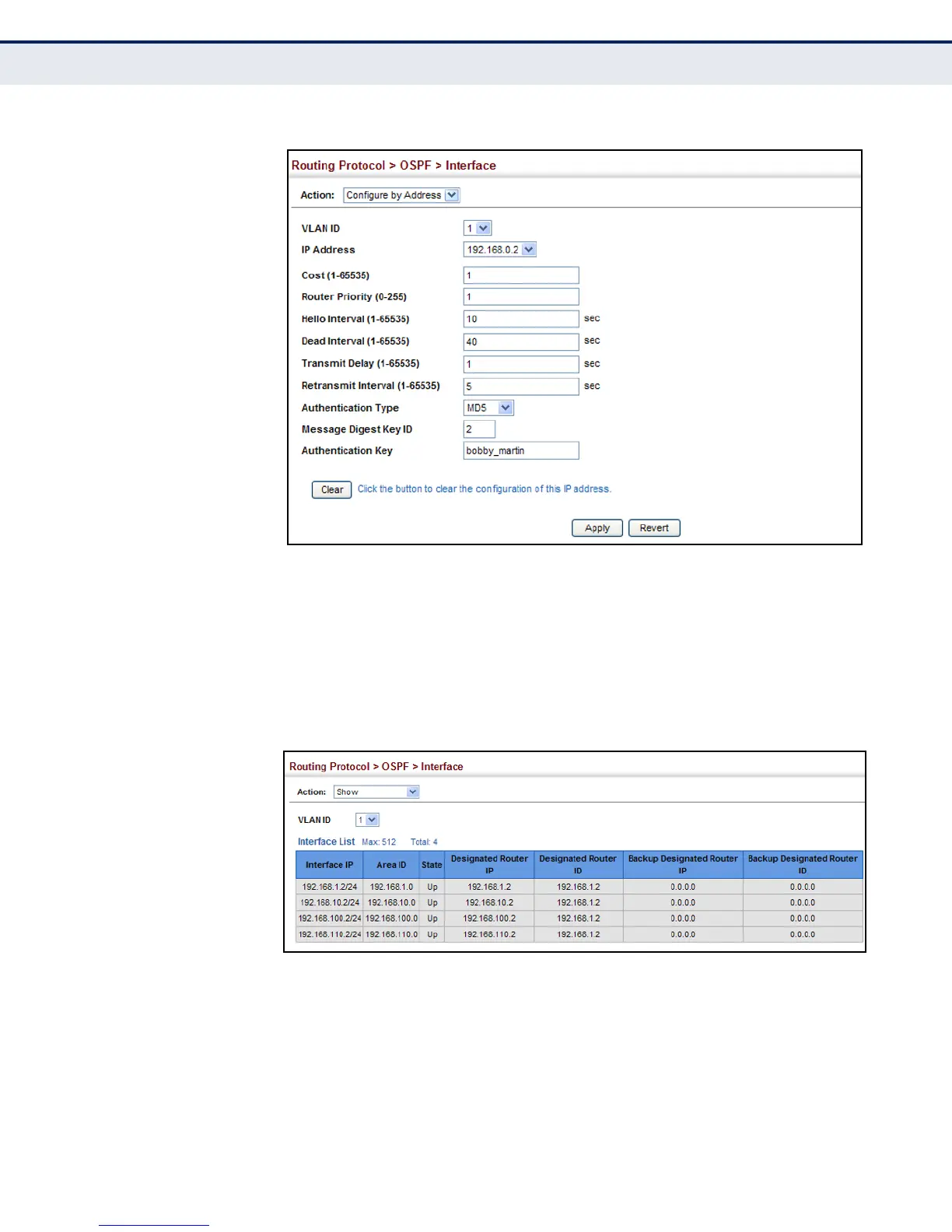

Figure 350: Configuring Settings for a Specific Area Assigned to a VLAN
To show the configuration settings for OSPF interfaces:
1. Click Routing Protocol, OSPF, Interface.
2. Select Show from the Action list.
3. Select the VLAN ID.
Figure 351: Showing OSPF Interfaces
To show the MD5 authentication keys configured for an interface:
1. Click Routing Protocol, OSPF, Interface.
2. Select Show MD5 Key from the Action list.
3. Select the VLAN ID.
