Fuji Xerox DocuPrint CM305 df Service Manual

4 - 192
Chapter 4 Disassembly / Assembly and Adjustments
[Replacement]
NOTE
Since two types of screws are used for securing the DRIVE ASSY MAIN, ensure
that the right screws are used at their right securing positions.
The securing positions for tap screws are marked with [T].
The securing positions for metal screws are marked with [M].

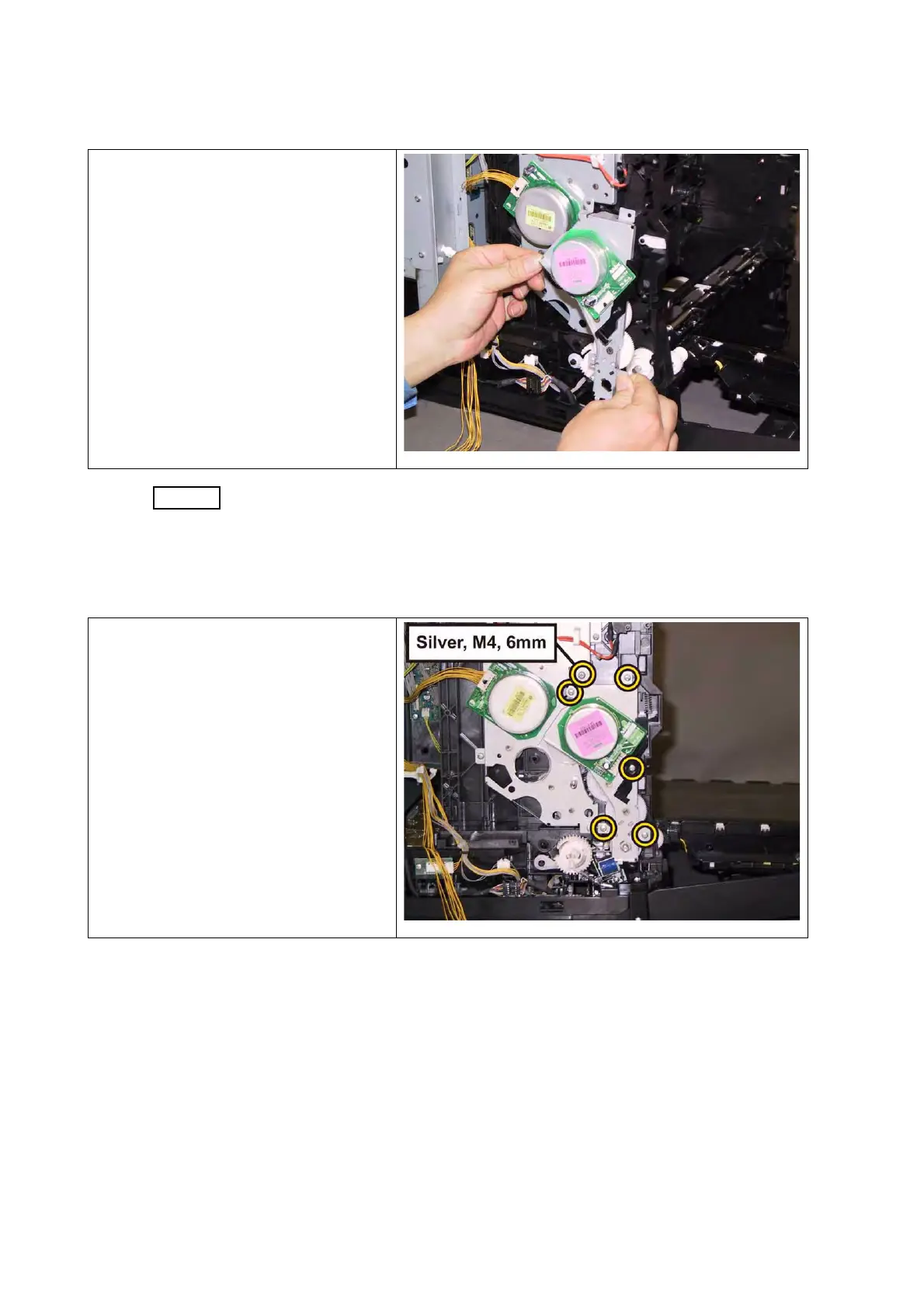

1) Attach the DRIVE ASSY MAIN to
the printer.
2) Secure the DRIVE ASSY MAIN to
the printer with the one screw (sil-
ver, M4, 6mm) and the five screws
(silver, tap, 8mm).
