Chapter 3 ’Web User Graphical Interface’ — Operating Instructions (Tutorial)
118 Electra VS - Version 05.10
User Manual - Rev. A
c. Set the parameters for Input , Video , PIP , Audio
transcodin
g, Pass-trough component , and Output .
Attention should be given to the following points:
- set the Output TS type to MPTS in the Global
parameters

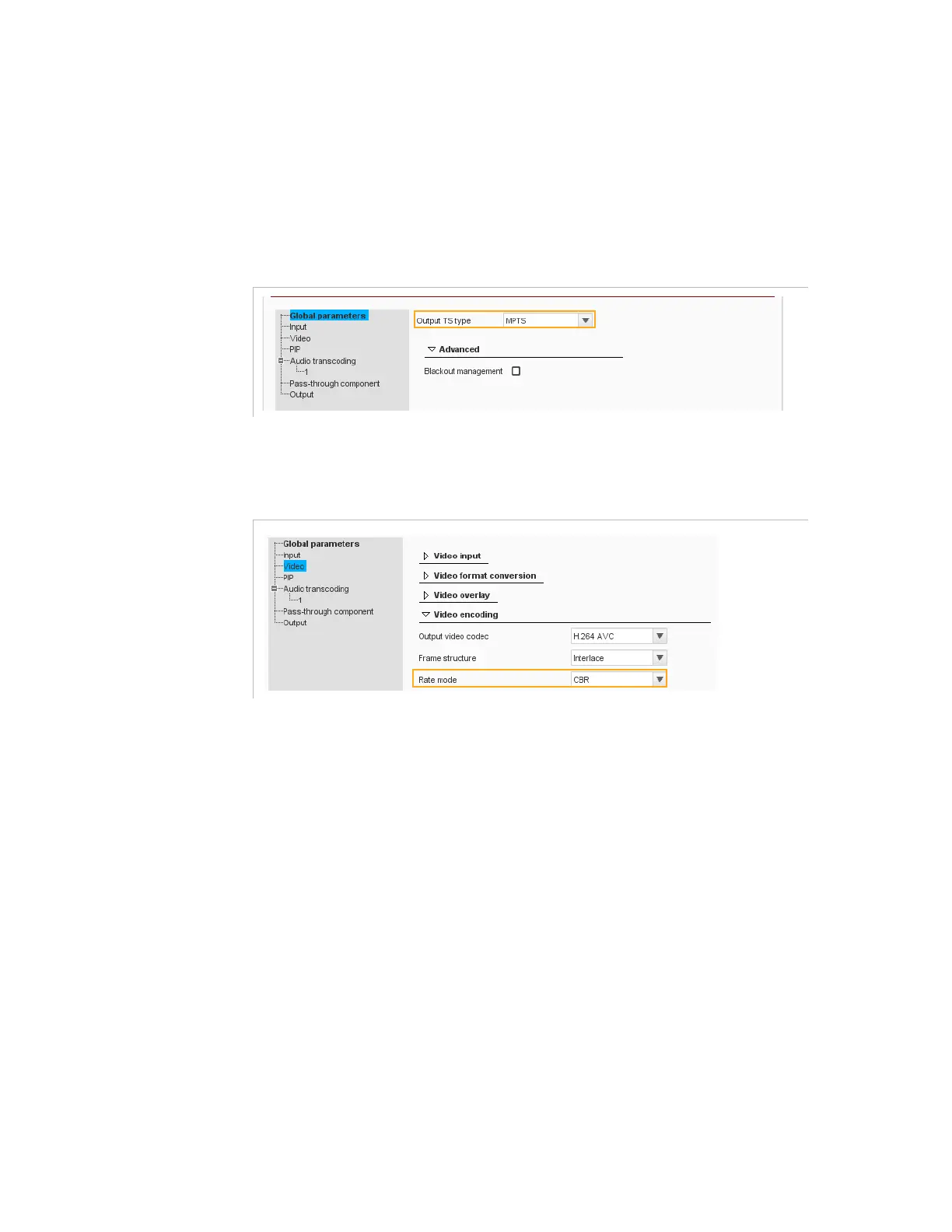

Figure 3-53. UM_TV1CBR job parameter - Global parameters
- set the Rate mode to CBR in the Video section.
Figure 3-54. UM_TV1CBR job parameter - Video
