Harmonic ELECTRA VS - Page 148

Chapter 3 ’Web User Graphical Interface’ — Operating Instructions (Tutorial)
148 Electra VS - Version 05.10
User Manual - Rev. A
c. Create another job (job2) based on the same workflow to
pass-through two tables. Enter the PID of the two tables to
extract.

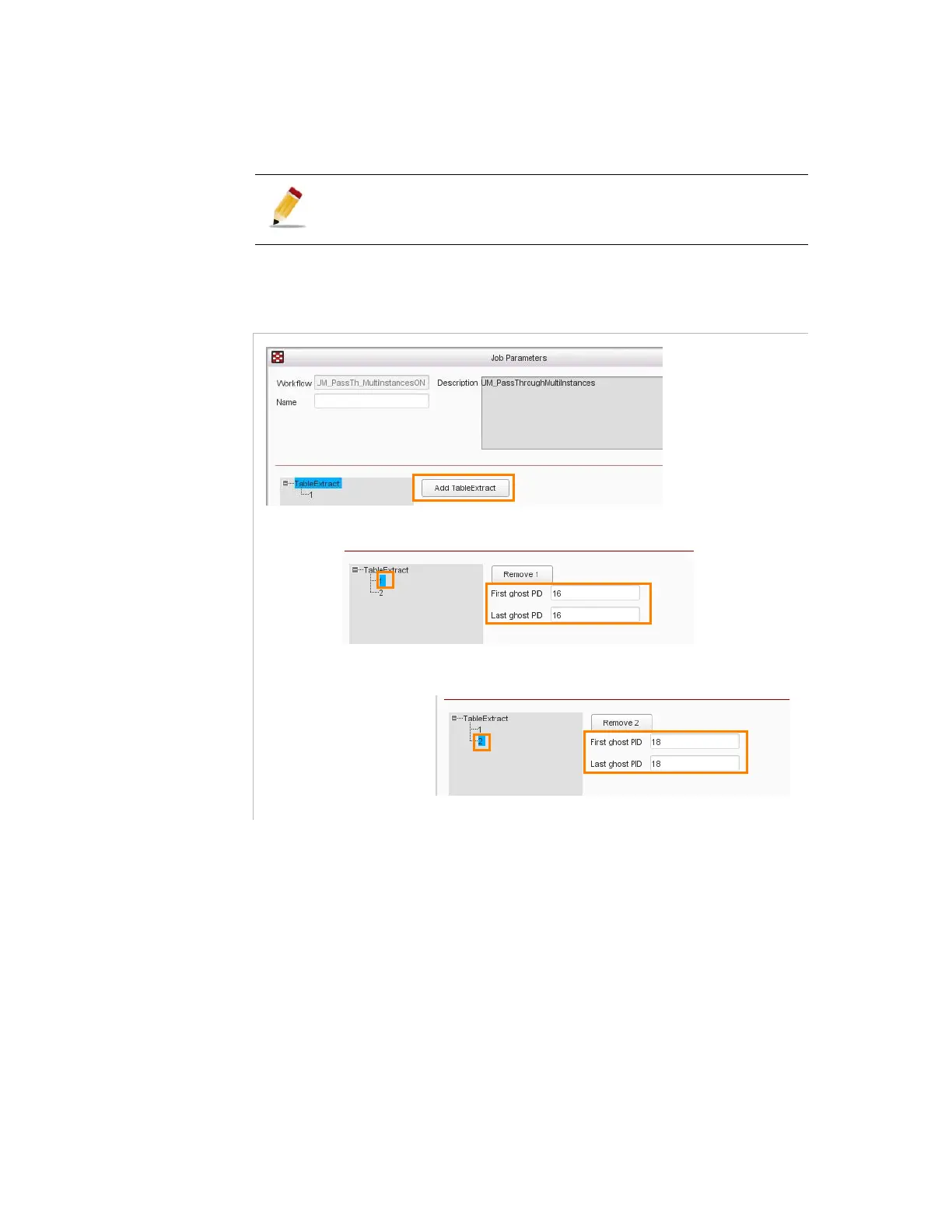

Figure 3-98. Multi-instance feature enabled - the same unique workflow with the other
jobs
To add instances, click the button Add ( Add TableExtract ).
1. Click ‘Add TableExtract’ to add a second instance
2. Set the first instance (i.e. the first table to pass-through)
3. Set the second instance (i.e. the second table to pass-through)
