Chapter 3 ’Web User Graphical Interface’ — Operating Instructions (Tutorial)
Electra VS - Version 05.10 147
User Manual - Rev. A

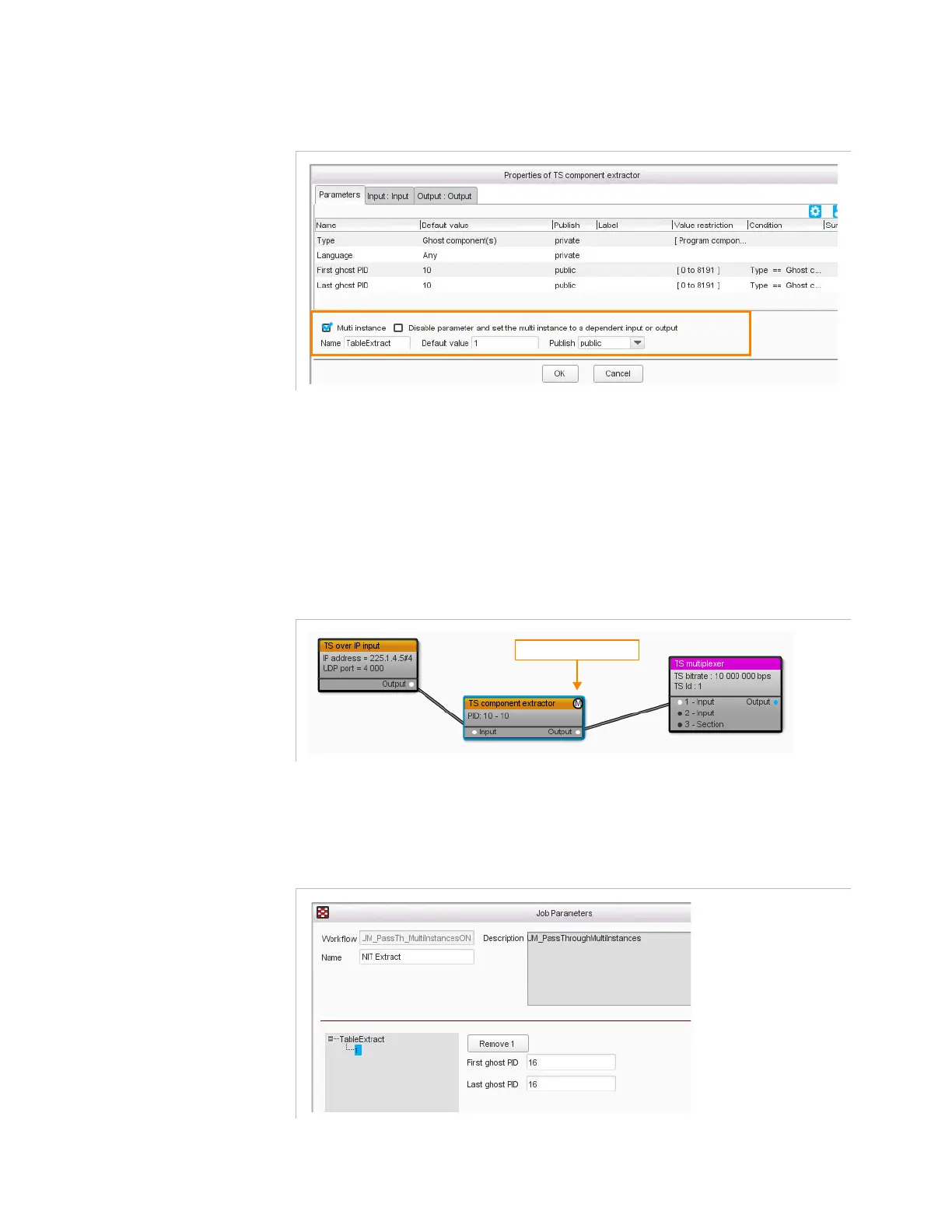

Figure 3-95. Multi-instance feature enabled - Setting the Multi-instance feature in a
processing component
2. When using multi-instantiable 'Component Extractor' Processing
component, only one workflow is required to transmit as many tables
as required through the jobs based on this workflow.
Hence you will
a. Create the workflow with the multi-instantiable 'Component
Extractor' Processing component.
Figure 3-96. Multi-instance feature enabled - Creating the unique workflow
b. Create a job (job1) based on this workflow to pass-through one
table. Enter the PID of the table to extract.
Figure 3-97. Multi-instance feature enabled - Unique workflow with the first job
M: Multi-instantiable
