Chapter 3 ’Web User Graphical Interface’ — Operating Instructions (Tutorial)
158 Electra VS
-
Version 05.10
User Manual - Rev. A
5.
Build the rest of the workflow at your convenience, or use the example
provided in the next section.
Workflow Example with an SDI Input
Here is an example of workflow that uses an SDI input.

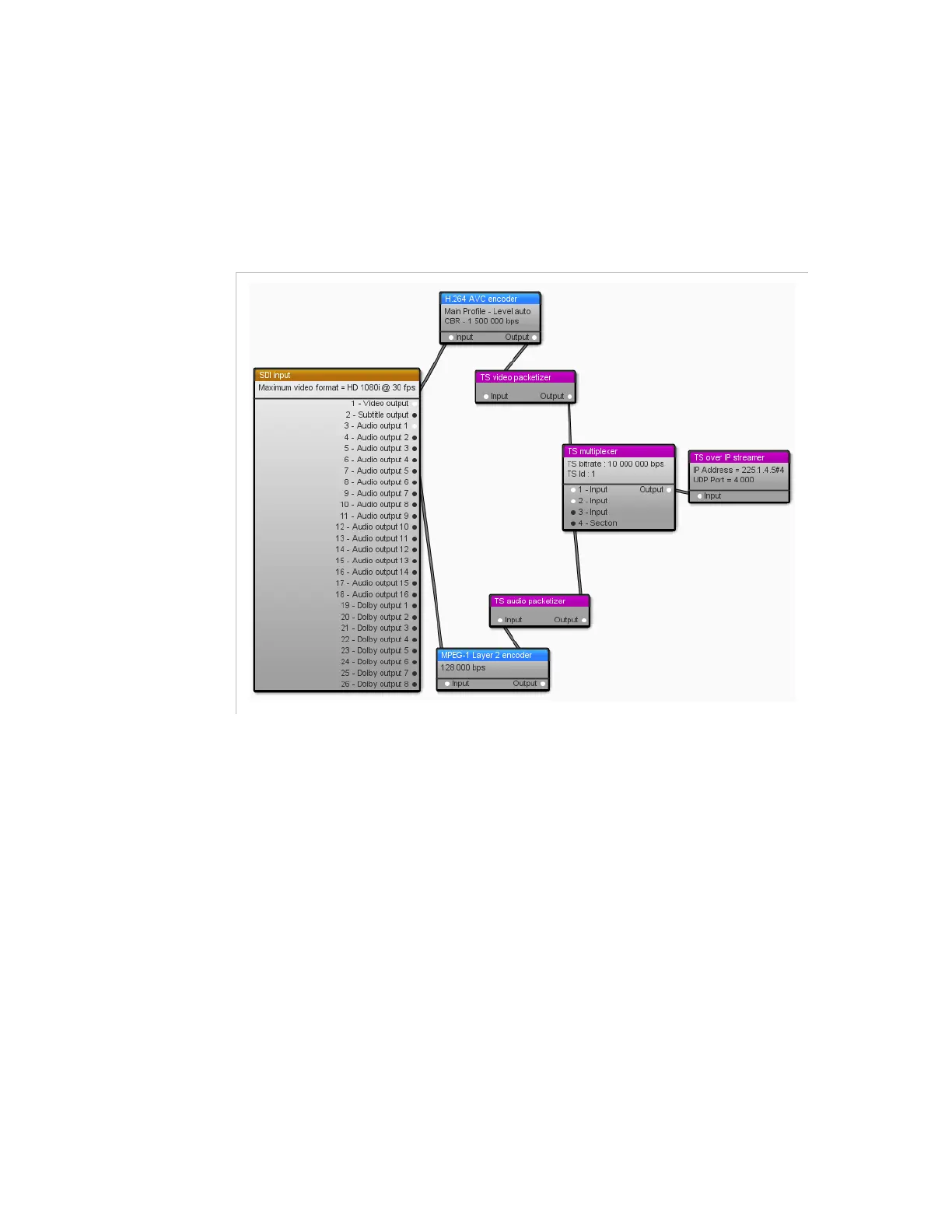

Figure 3-113. Workflow example with an SDI input
This workflow contains:
1 SDI input
For the video component:
1 H.264 AVC encoder
1 TS video packetizer
For the audio component:
1 MPEG-1 Layer 2 encoder
1 TS audio packetizer
1 TS multiplexer
1 TS over IP streamer
