Chapter 3 ’Web User Graphical Interface’ — GUI Description
216 Electra VS - Version 05.10
User Manual - Rev. A

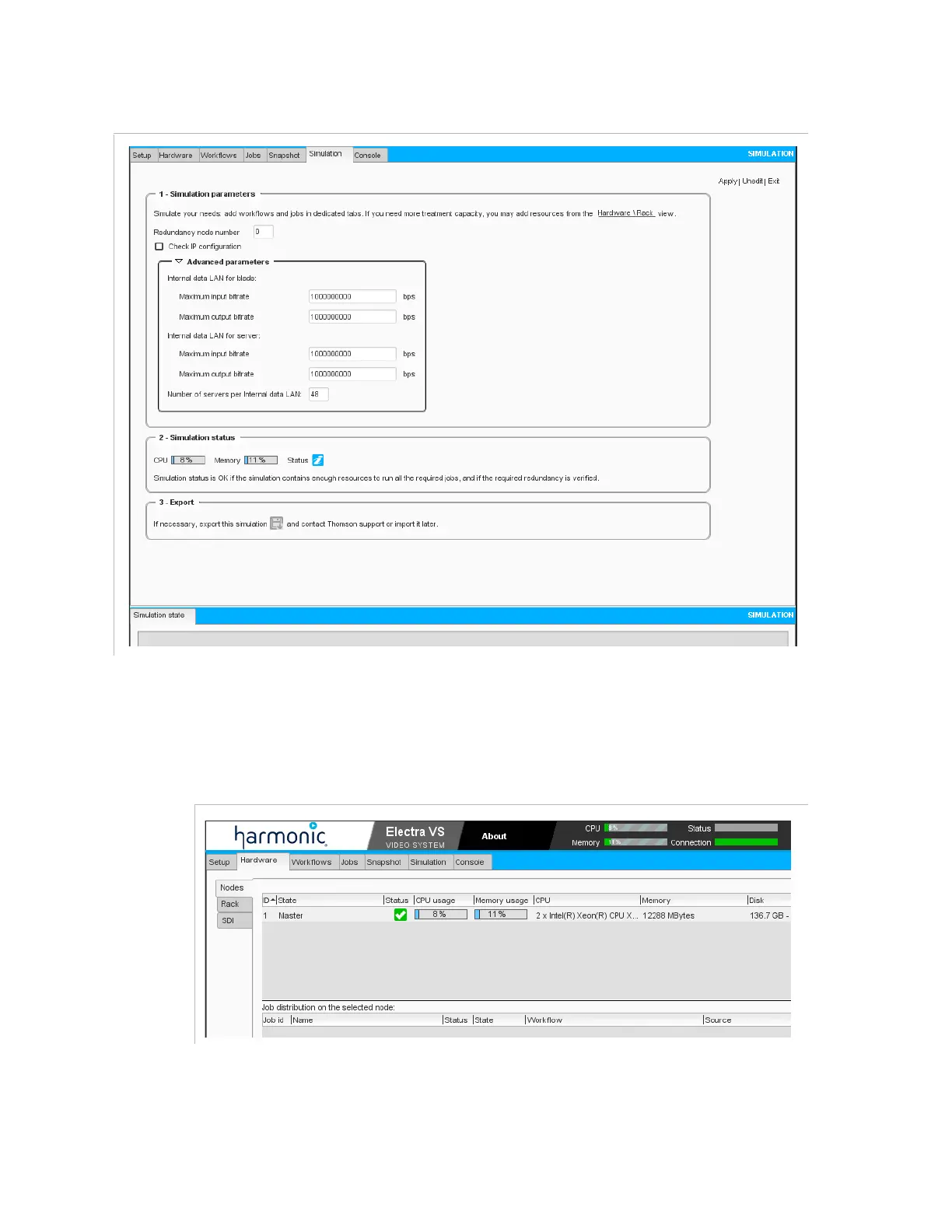

Figure 3-178. Simulation view
The hardware configuration is visible in the Hardware tab. It
corresponds to a virtual Electra VS if configuration has been created from
scratch.
Figure 3-179. Hardware tab
