Chapter 3 ’Web User Graphical Interface’ — Workflow Library
306 Electra VS - Version 05.10
User Manual - Rev. A
 Position X : horizontal position of the beginning of the image
(in pixels).
 Position Y : vertical position of the beginning of the image (in
pixels).
For all the overlay (image or text) you can add start or stop effects that
occur at overlay appearance or disappearance.

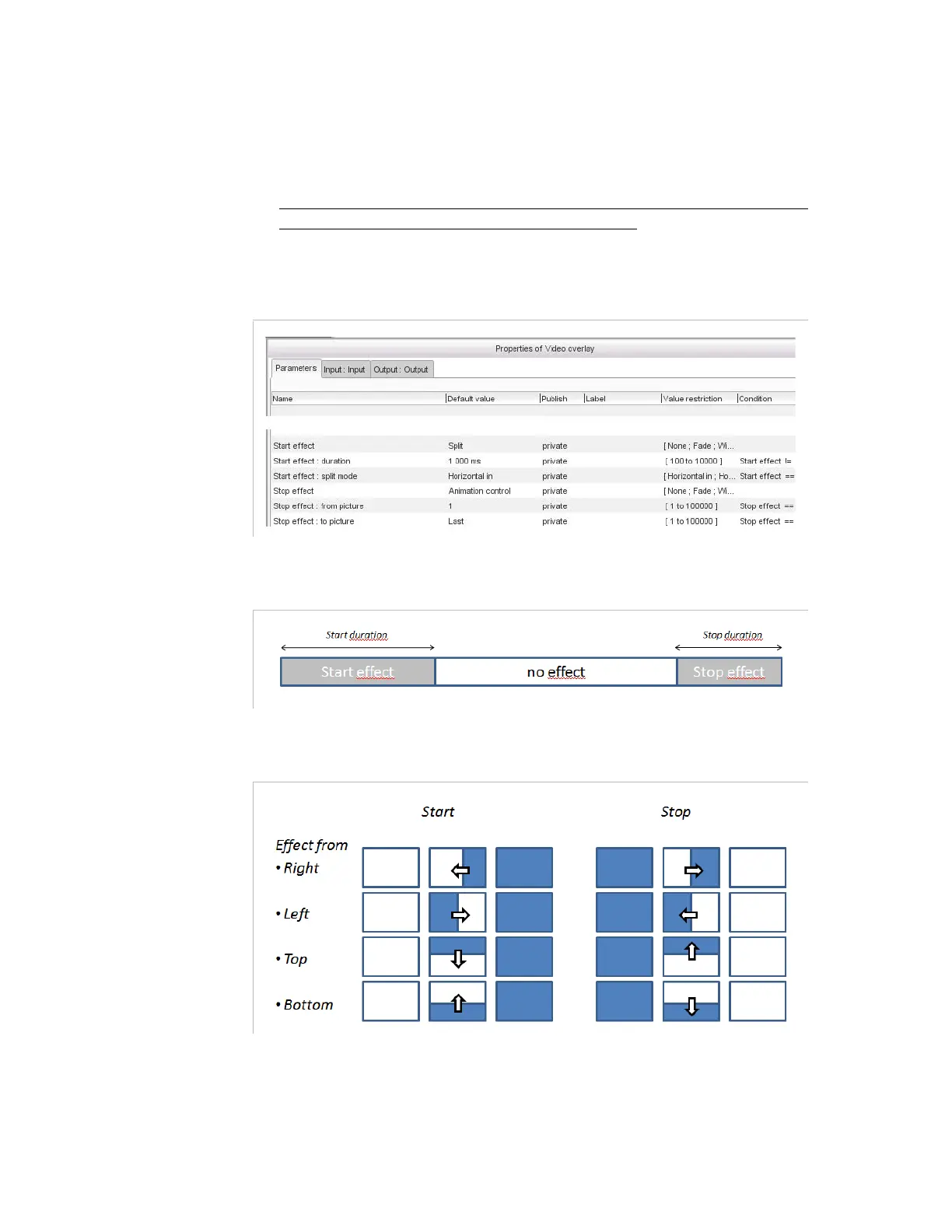

Figure 3-279. Video overlay parameters - Start or stop effects (Split and Animation
Control respectively in the screen below)
Figure 3-280. Overlay parameters - Effects: Start effect and Stop effect durations
Figure 3-281. Overlay parameters - Effects: Wipe effect
