3. Re-mount the top left hinge and front panel together on the chassis.

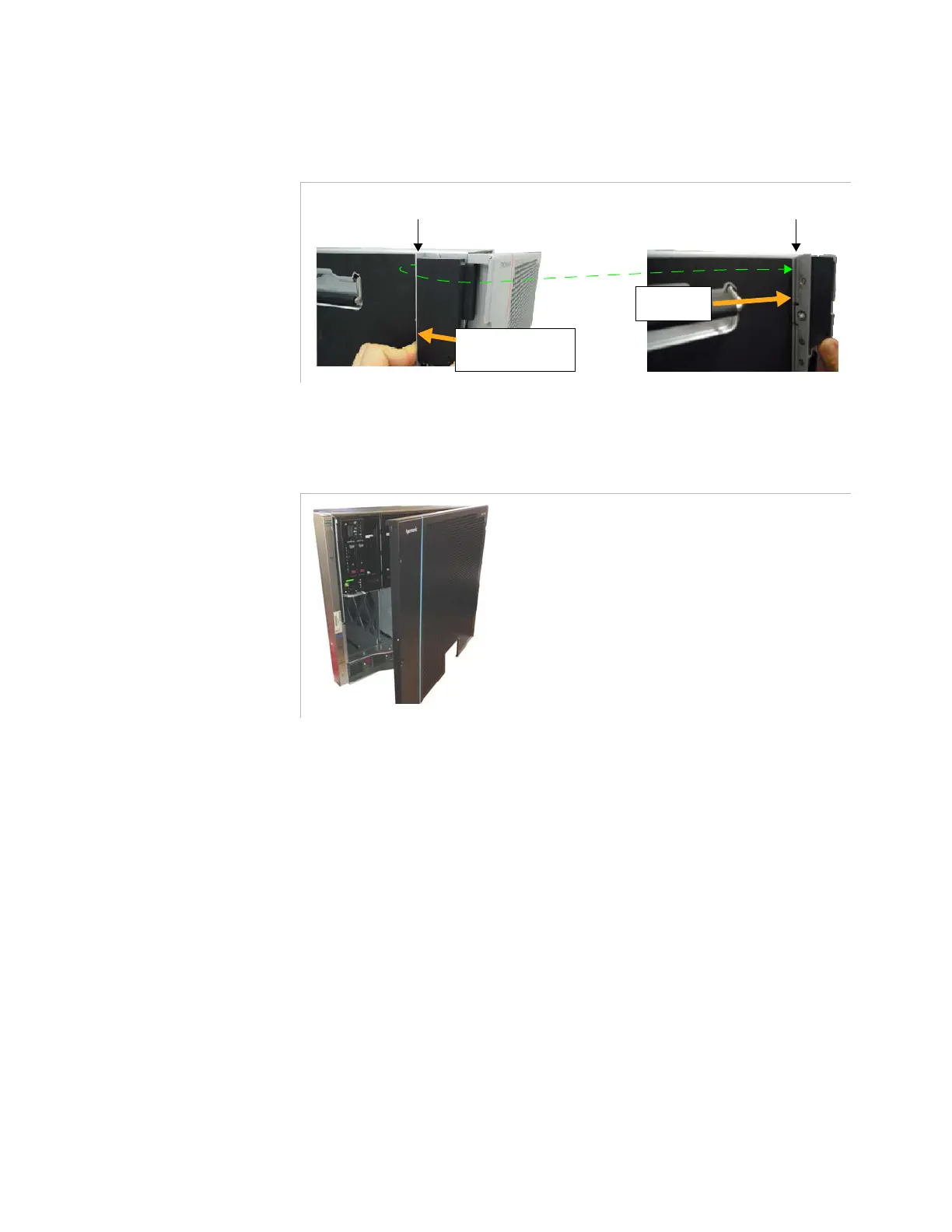

Figure 2-19. Remounting the top left hinge
Procedure to Install a Right-Opening Front Panel (Hinges on Right)
Figure 2-20. Front panel with right-opening
1. Remove the top right hinge as shown in Figure 2-23 (this time with
the right hinge).
Left side panel
of the chassis
top left
hinge
Front
panel
top
hinge
left
Left side panel
of the chassis
upright
of the chassis
upright
of the chassis
1. Push the top left
hinge against the
upright of the chassis.
2. Fix with a
screw.
