Keithley DMM7510 Reference Manual

Appendix
0: Status model Model DMM7510 7½ Digit Graphical Sampling Multimeter
Reference Manual
10 DMM7510-901-01 Rev. B / May 2015
Status Byte Register diagram
The Status Byte Register consists of two 8-bit registers that control service requests, the Status Byte
Register and the Service Request Enable Register. These registers are shown in the following figure.

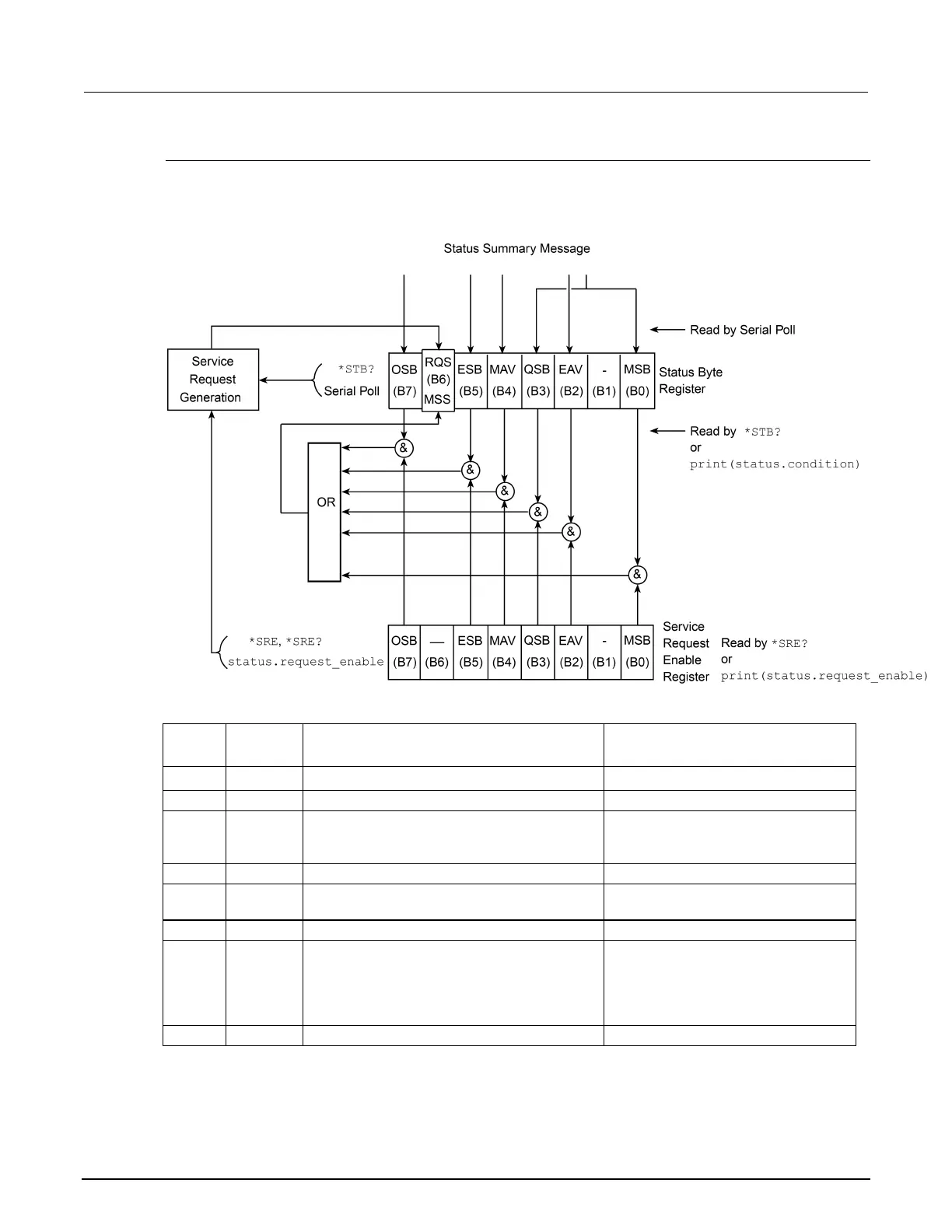

Figure 175: Model DMM7510 Status Byte Register
The bits in the Status Byte Register are described in the following table.
Bit
Decimal
value
Bit name When set, indicates the following
has occurred:
0
1
Measurement summary Bit (MSB)
An enabled questionable event
1
2
Not used
Not applicable
2
4
Error available (EAV)
An error is present in the error queue
(warning and information messages do
not affect this bit)
3
8
Questionable summary bit (QSB)
An enabled questionable event
4
16
Message available (MAV)
A response message is present in the
output queue
5
32
Event summary bit (ESB)
An enabled standard event
6
64
Request for service (RQS)/Master summary
status (MSS)
An enabled summary bit of the Status
Byte Register is set; depending on
how it is used, this is either the
Request for Service (RQS) bit or the
Master Summary Status (MSS) bit
7
128
Operation summary bit (OSB)
An enabled operation event

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
