7½ Digit Graphical Sampling Multimeter Reference Manual Section 2:
DMM7510-901-01 Rev. B / May 2015 2-3
Front-panel overview
The front panel of the Model DMM7510 is shown below. Descriptions of the controls on the front
panel follow the figure.

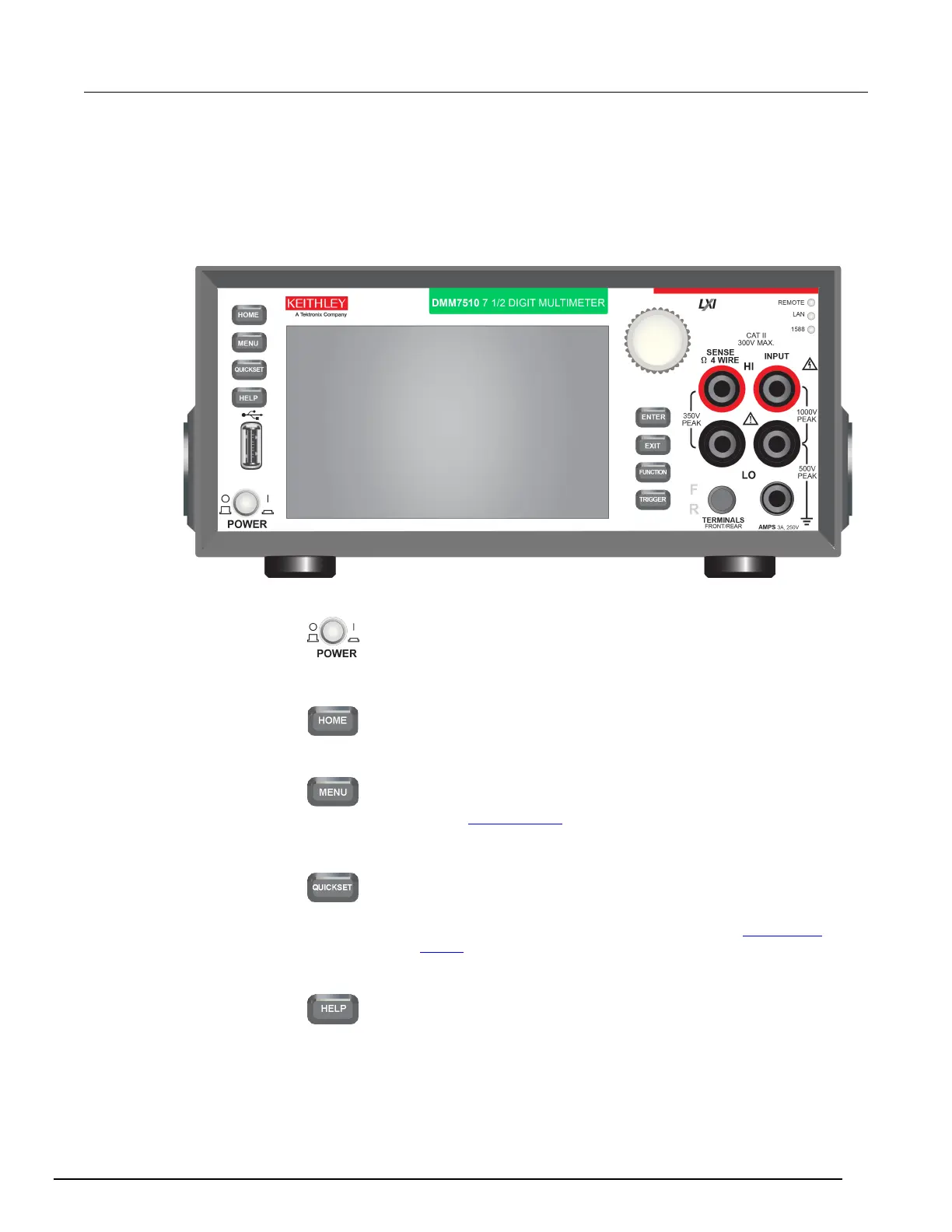

Figure 1: Model DMM7510 front panel
POWER switch
Turns the instrument on or off. To turn the instrument on, press
the power switch so that it is in the on position (|). To turn it off,
press the power switch so that it is in the off position (O).
HOME key
Returns the display to the Home screen.
MENU key
Opens the main menu. Press the icons on the main menu to open
measure, view, trigger, script, and system screens. For details,
refer to
Menu overview (on page 2-22).
QUICKSET key
Opens a menu of preconfigured setups, including Voltage
Waveform, Interval Measure, Current Waveform, and External
Scan. Also allows you to choose measure functions and adjust
performance for better resolution or speed. Refer to
Using Quick
HELP key
Opens help for the area or item that is selected on the display. If
there is no selection when you press the HELP key, it displays
overview information for the screen you are viewing.
