2: General operation Model DMM7510 7½ Digit Graphical Sampling Multimeter
2-4 DMM7510-901-01 Rev. B / May 2015

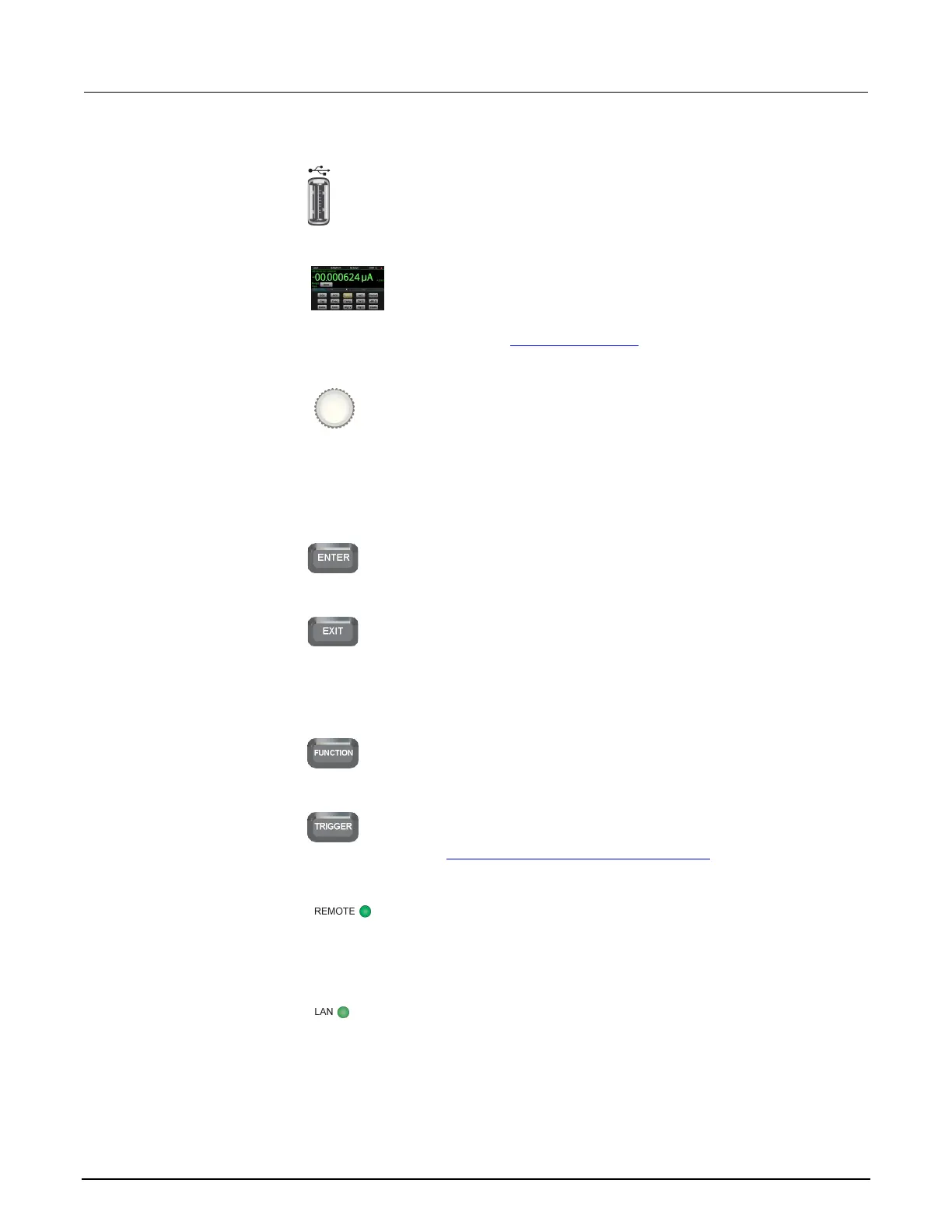

USB port
Saves reading buffer data and screen snapshots to a USB flash
drive. Also stores and retrieves scripts to and from a USB flash
drive. The flash drive must be formatted as a FAT drive.
Touchscreen
The Model DMM7510 has a high-resolution, five-inch color
touchscreen display. The touchscreen accesses swipe screens
and menu options. You can access additional interactive screens
by pressing the front-panel MENU, QUICKSET, and FUNCTION
keys. Refer to
Touchscreen display (on page 2-8) for details.
Navigation control
Moves the cursor and make screen selections.
Turning the navigation control: Moves the cursor to highlight a
list value or menu item so that you can select it. Turning the
control when the cursor is in a value entry field increases or
decreases the value in the field.
Pressing the navigation control:
Selects the highlighted choice
or allows you to edit the selected field.
ENTER key
Selects the highlighted choice or allows you to edit the selected
field.
EXIT key
Returns to the previous screen or closes a dialog box. For
example, press the EXIT key when the main menu is displayed to
return to the Home screen. When you are viewing a subscreen
(for example, the Event Log screen), press the EXIT key to return
FUNCTION key
Displays instrument functions. To select a function, touch the
function name on the screen.
TRIGGER key
Accesses trigger-related settings and operations. The action of
the TRIGGER key depends on the instrument state. For details,
see Switching between measurement methods (on page 3-63).
REMOTE LED
indicator
Illuminates when the instrument is controlled through a remote
interface.
LAN LED indicator
Illuminates when the instrument is connected to a local area network
(LAN).
