Keithley DMM7510 Reference Manual

Model DMM7510
7½ Digit Graphical Sampling Multimeter Reference Manual Section 3:
Functions and features
DMM7510-901-01 Rev. B / May 2015 3-105
TSP-Link connections
The Model DMM7510 has three synchronization lines that are built into the TSP-Link connection. If
you are using a TSP-Link network, you do not have to modify any connections.
Example connections for a TSP-Link system are shown in the following figure.
The TSP-Link connectors are on the rear panel of the instruments. All of the instruments in the
system are connected in a sequence (daisy-chained) using LAN crossover cables.

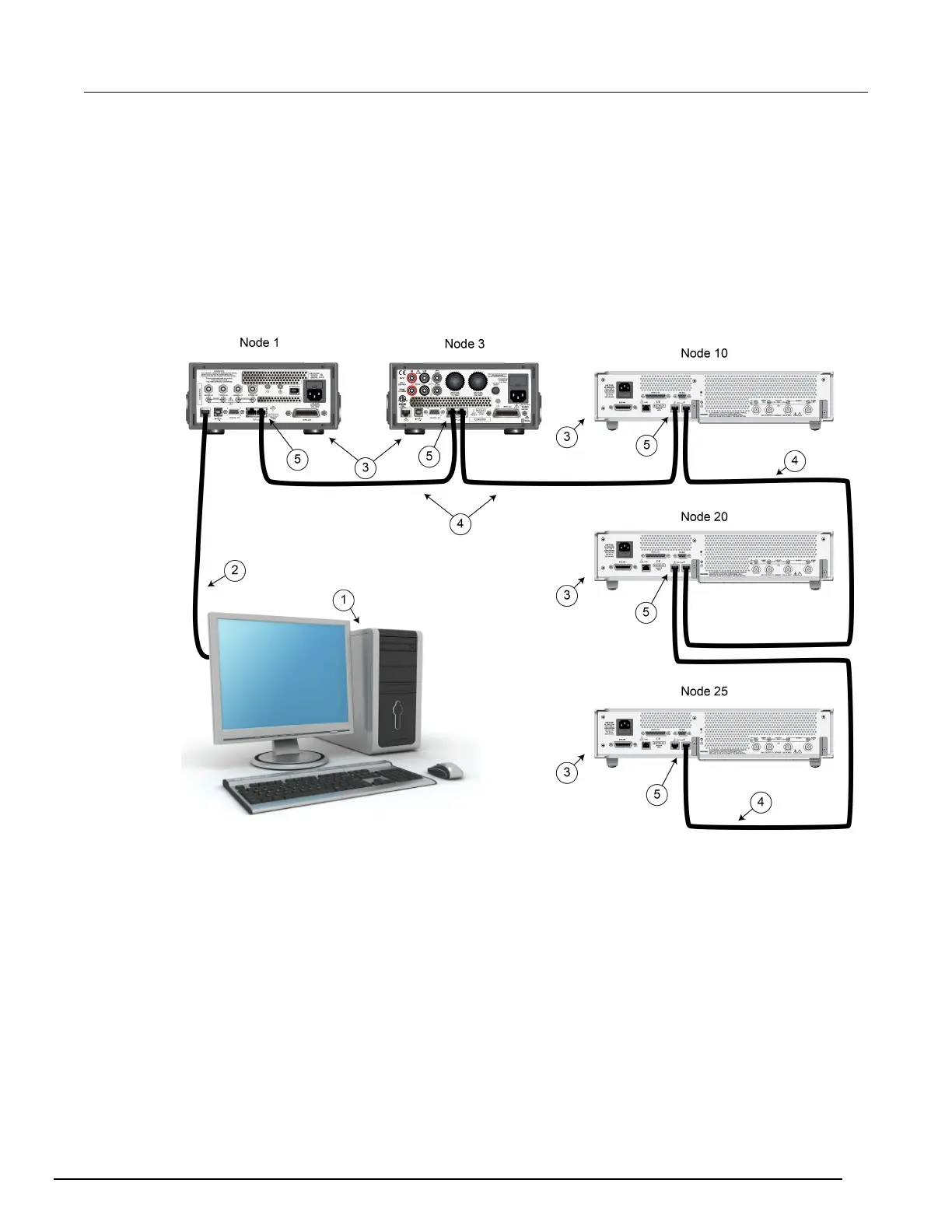

Figure 133: TSP-Link connections

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
